Name: Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 500.00 USD
Availability: InStock

Home > products > Spring Test Probes >

Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series

Gold-Plated Spring Test Probes

ICT FCT Test Probe

Spring Probes for Circuit Boards

Place of Origin:

China

Brand Name:

WIINNER

Certification:

ISO9001

Request A Quote

Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series

Product Details

Color:

Black,black/red,White,Red & Black

Product Name:

Test Probe

Type:

ICT / FCT (in-circuit Test And Function Test

Series:

GKS-100

Grid:

2.54 Mm

Warranty:

12 Months,1 Year

Oem/odm:

Welcome Order

Product:

In Stock

Operating Temperature:

0℃~40℃

Package:

Selectable,Carton

Min. Temperature:

- 40 °C

Max. Temperature:

+ 80 °C

The Probe Length:

40mm

Total Length ::

33.4 Mm

Barrel Diameter ::

1.37 Mm

Maximum Stroke ::

6.35 Mm

Spring Pre-load ::

0.78 N

Collar Height ::

Spring Force At Working Stroke ::

3 N

Working Stroke ::

4.3 Mm

Availability:

Custom Sizes Available

Highlight:

Gold-Plated Spring Test Probes

ICT FCT Test Probe

Spring Probes for Circuit Boards

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

1-999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days.

Payment Terms

,T/T,L/C,Western Union

Supply Ability

1000000 rolls per month

Factory Supply Gold Plated Test Probes

Well-established test probes for contacting PCBs

For optimal contact to the test points (e.g. pads, vias, and pins), various tip styles with various diameters and finishes are available.

Various spring forces available as well as versions with stainless steel springs suitable for high temperatures

Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles

Electrical data

Current load capacity / rated current :5 A

Typical resistance (Ri) :< 20 mOhm

Mechanical data

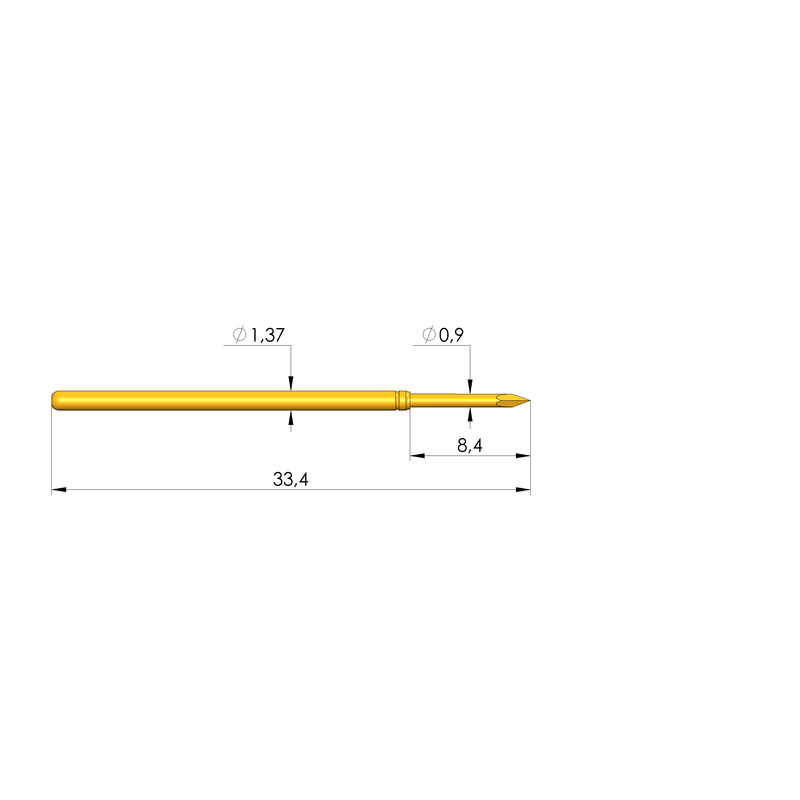

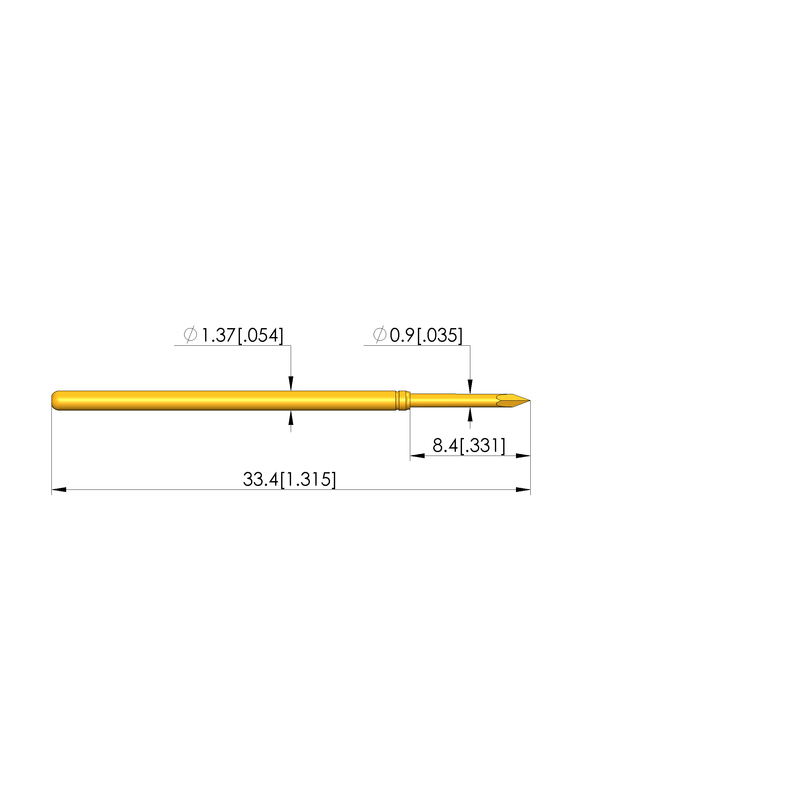

Total length :33.4 mm

Barrel diameter :1.37 mm

Maximum stroke :6.35 mm

Spring pre-load :0.78 N

Collar height :00

Spring force at working stroke :3 N

Working stroke :4.3 mm

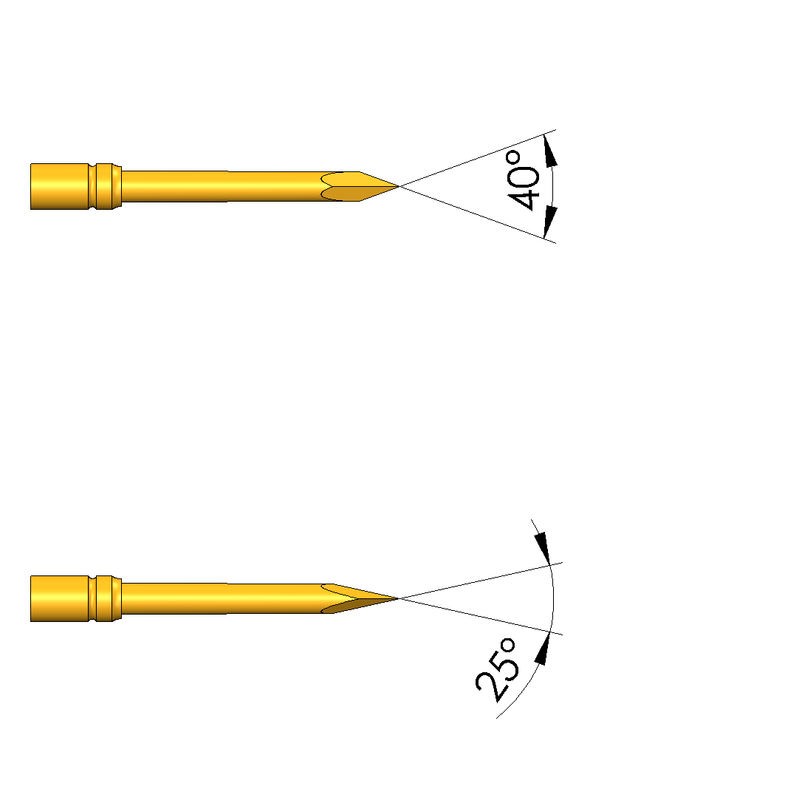

Tip style data

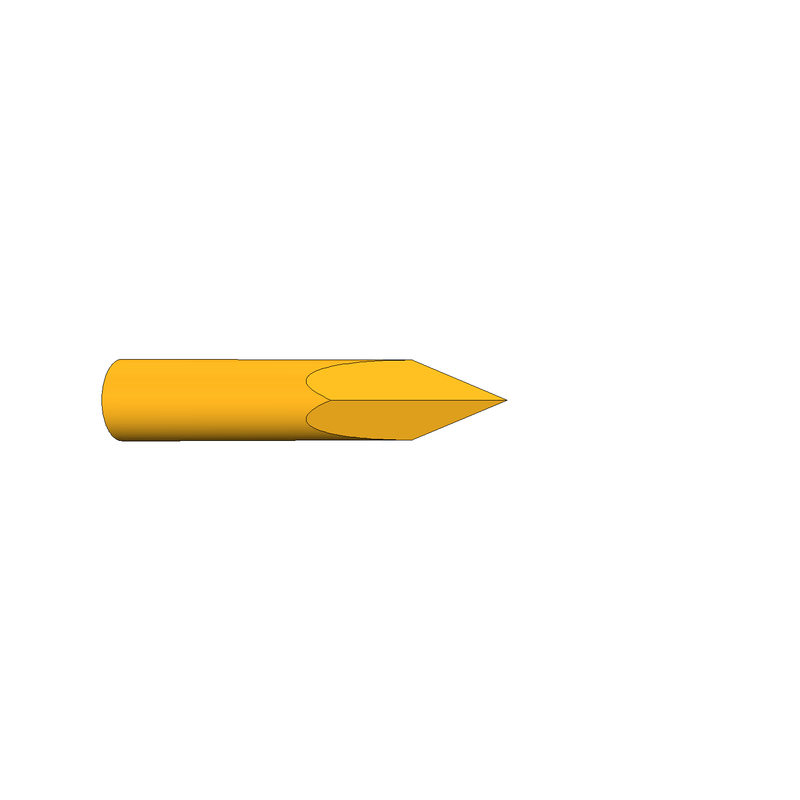

Tip style :91 dagger, self-cleaning

Tip diameter :0.9 mm

Tip style surface :A gold

Tip style material :2 steel

Test Probe Selection
Test probes also have many different manufacturers, but all have similar constraints. When choosing a test probe receptacle, the most important decision is what tip to use.

The number of tips that are available can be overwhelming. From past experiences, we found that we typically only use a couple of different tips.
* Crown
* Spear
* Cup
* Cone

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we provide customized diameters, plating thicknesses, and mechanical specs upon request. Every reel is delivered with material traceability and certificate of analysis.

Contact us to request samples or a quotation for your application needs.
