Name: High Strength Gold Plated Tungsten Bonding Wire OEM & Bulk Supply
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Home > Products > Gold Plated Tungsten Wire >

High Strength Gold Plated Tungsten Bonding Wire OEM & Bulk Supply

Brand Name:

WINNER

Certification:

ISO9100

Model Number:

TW011

Request A Quote

Product Details

Product Type:

Bonding Wire

Coating Thickness:

0.0003mm

Material:

Tungsten

Coating:

Gold

Length Meters:

500/1000

Bonding Method:

Ultrasonic

Temperature Range:

-40°C To 200°C

Surface Finish:

Bright

Conductivity:

98%

Package Size:

100 Meters

Bond Strength:

High

Package:

Spool

Payment & Shipping Terms

Minimum Order Quantity

1PC

Price

999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

High Strength Gold Plated Tungsten Bonding Wire OEM & Bulk Supply

Get Best Price

Video

High Temperature Resistance Gold Plated Micron Tungsten Wire For Sale

Get Best Price

High Purity Gold Plated Micrcon Tungsten Filament Wire Available In Affordable Price

Get Best Price

Video

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Get Best Price

Contact Now

Product Description

What Is Gold Plated Tungsten Wire?

Gold plated tungsten wire is a composite wire consisting of a high-strength tungsten core with a uniform gold coating on the surface. Tungsten provides exceptional tensile strength, high melting point, and dimensional stability, while the gold layer ensures excellent electrical conductivity, oxidation resistance, and bonding performance.

This combination makes gold plated tungsten wire ideal for semiconductor packaging, micro-electronic interconnections, and high-reliability applications where pure gold wire may lack sufficient mechanical strength.

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

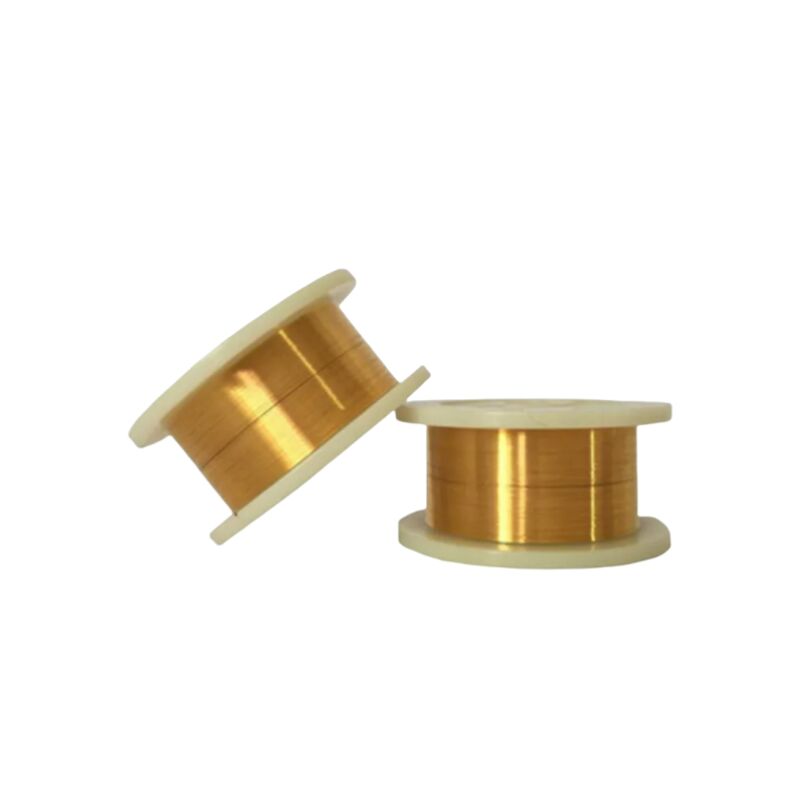

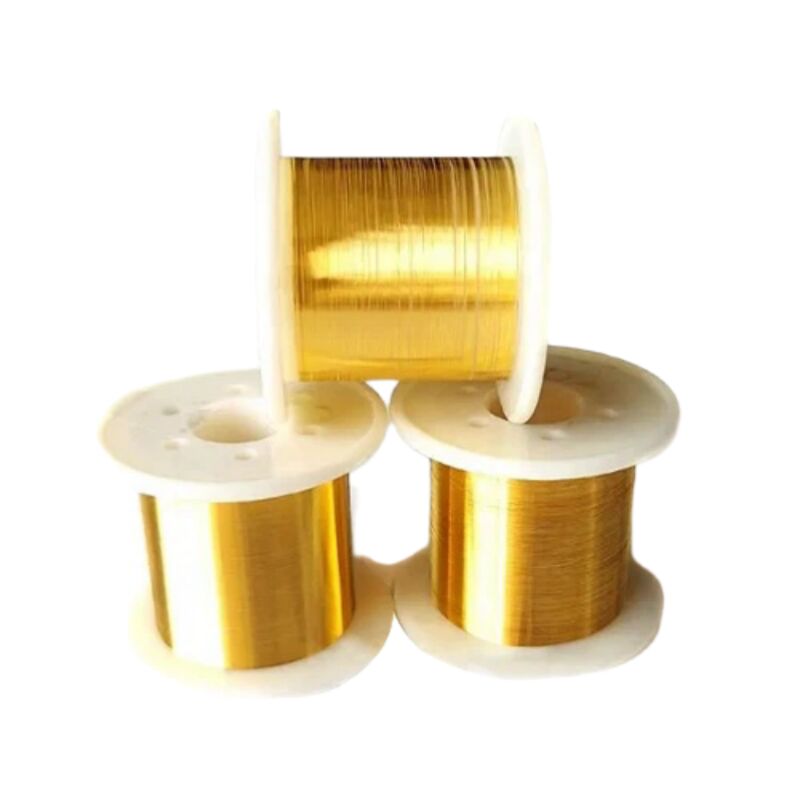

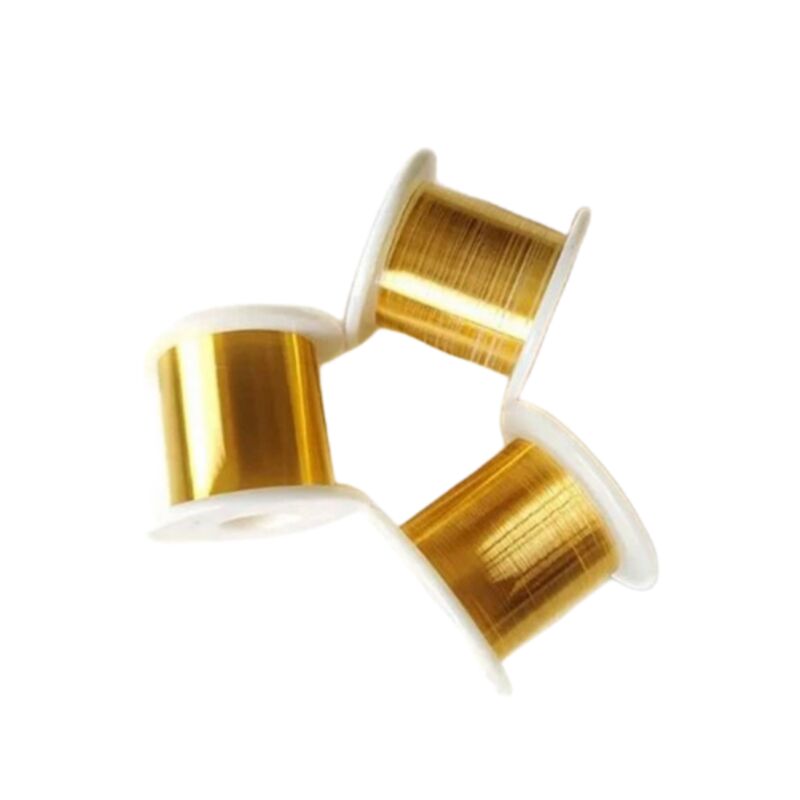

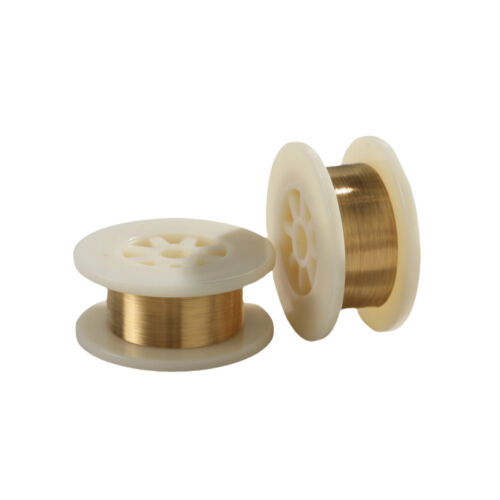

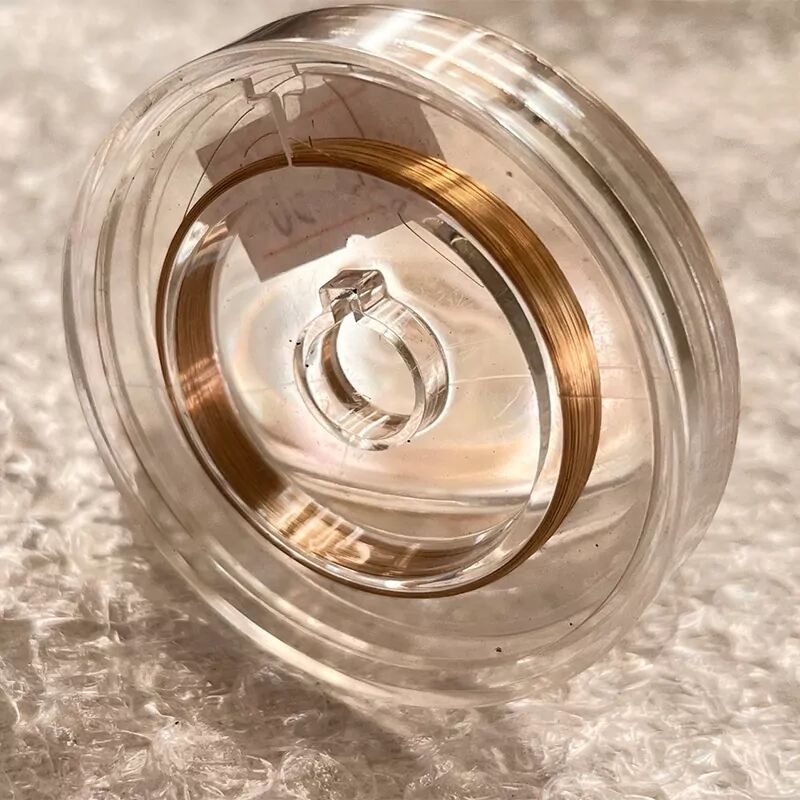

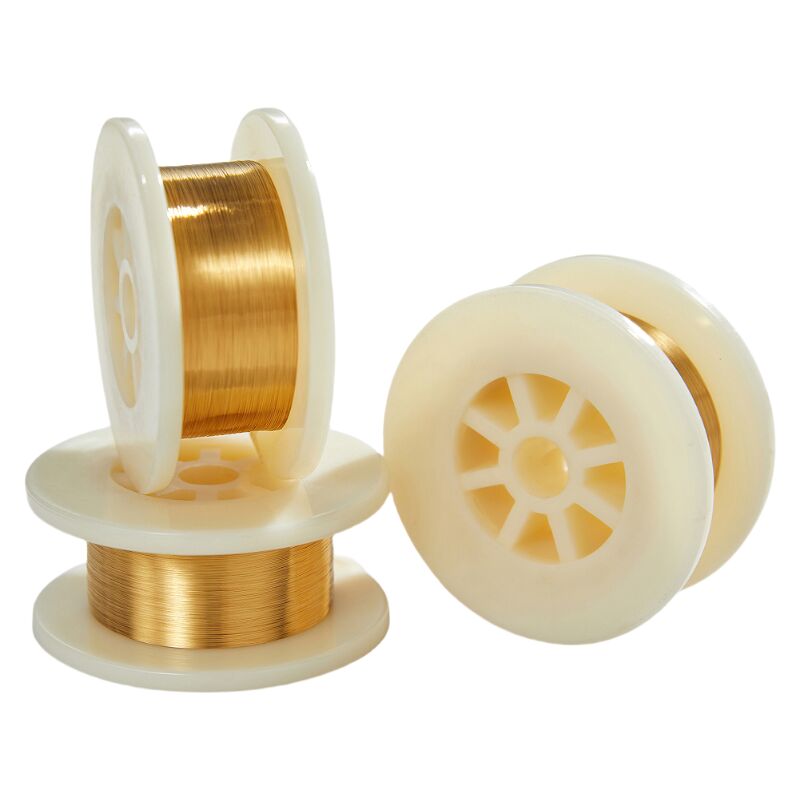

Product Images
