Applications of palladium-plated copper wire: Can be used in integrated circuits, semiconductor packaging, LED packaging, optoelectronic packaging, etc.

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 0

1.What kind of Enameled copper wire do Winner produce?

We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.

2.What's diameters available of the Enamelled copper wire ?

We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.

3.What's selfbonding enameled copper wire?

Selfbonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.This adhesive has a bonding feature, which is activated

by heat or solvents.

Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.

The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications

as bobbins, tape, varnishing, or impregnation may be eliminated.

4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?

Of course you can!

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 1

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 2

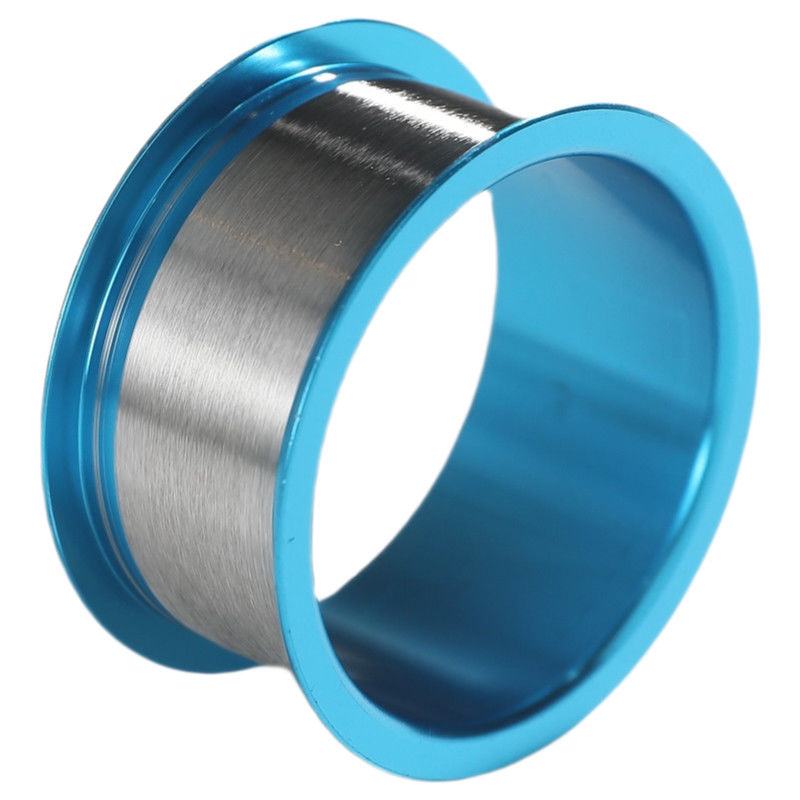

Pd Coated Copper Wire
Type	Ø Diameter ±1% μm	Breaking Load BL(gf)	Elongation EL(%)	Length Meters
PW-1	18(0.7mil)	>4	8-14	500/1000/2000
	20(0.8mil)	>5	9-15	500/1000/2000
	23(0.9mil)	>7	10-17	500/1000/2000
	25(1.0mil)	>9	11-17	500/1000/2000
	30(1.2mil)	>14	14-22	500/1000/2000
