Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Double-head test probe for IC testing

Spring contact pin with warranty

YOUFU UF-FTO55FD030-002 test probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Contact Us
Request A Quote
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002
Product Details
Product Name:
Spring Test Probe
Barrel:
P.B., Gold-palted
Bottom Plunger:
BeCu/SK4,gold -plated
TOP Plunger:
SK4(Be Cu)/Gold Plated
Spring:
SWPB(SUS)/Gold Plated
Availability:
Custom Sizes Available
Coating:
Gold Plated
Current Rating:
3A
Contact Resistance:
50 Mohms Max
Bandwidth:
-0.19dB @ 19.6GHz
Inductace:
1.15nH
Captance:
1.41pF
Full Stroke:
0.7mm
Rated Stroke:
0.5mm
Spring Force:
25grams@0.5mm
Mechanical Life Exceeds:
200K
Highlight:

Double-head test probe for IC testing

,

Spring contact pin with warranty

,

YOUFU UF-FTO55FD030-002 test probe

Payment & Shipping Terms
Minimum Order Quantity
3000pcs
Price
999
Packaging Details
Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device online

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Get Best Price
Good price Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 online

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Get Best Price
Good price Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing online

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Get Best Price
Good price Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing online

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Get Best Price
Contact Us
Contact Now
Product Description
Dual-Head High-Frequency IC Test Probe YOUFU UF-FTO55FD030-002
High Quality Switch Contact Pin Test Probe YF DE2-055BB30-01C0. Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Product Images
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 0





Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 1


Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 2

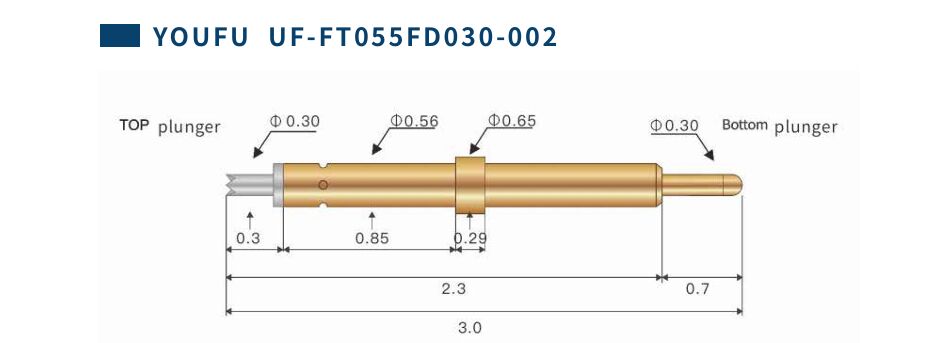

Detailed Component Illustration
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 3

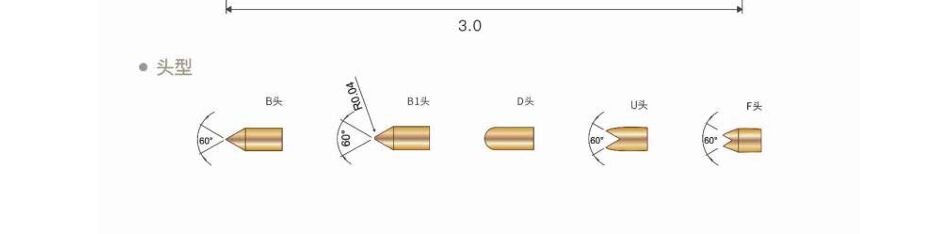

Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 4
Our probe manufacturing facility
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 5
Quality control inspection
Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 6
Packaged probes ready for shipment
