Name: Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Home > Products > Spring Test Probes >

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Gold Plated Spring Test Probe

2A Current Rating IC Test Probe

Custom Sizes Pogo Pin

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Request A Quote

Product Details

Product Name:

Spring Test Probe

Barrel:

P.B., Gold-palted

Bottom Plunger:

BeCu/SK4,gold -plated

TOP Plunger:

SK4(Be Cu)/Gold Plated

Spring:

SWPB(SUS)/Gold Plated

Availability:

Custom Sizes Available

Coating:

Gold Plated

Current Rating:

Contact Resistance:

100 Mohms Max

Bandwidth:

-0.34dB @ 19.6GHz

Inductace:

1.27nH

Captance:

1.59pF

Full Stroke:

1.0mm

Rated Stroke:

0.65mm

Spring Force:

25grams@0.65mm

Mechanical Life Exceeds:

200K

Highlight:

Gold Plated Spring Test Probe

2A Current Rating IC Test Probe

Custom Sizes Pogo Pin

Payment & Shipping Terms

Minimum Order Quantity

3000pcs

Price

999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Get Best Price

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Get Best Price

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Get Best Price

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Get Best Price

Contact Now

Product Description

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO58BD058-001

Dual-Head High-Frequency IC Test Probe

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Product Images

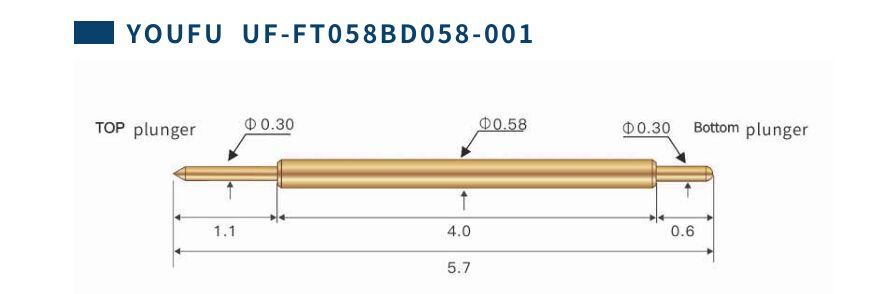

Detailed Component Illustration

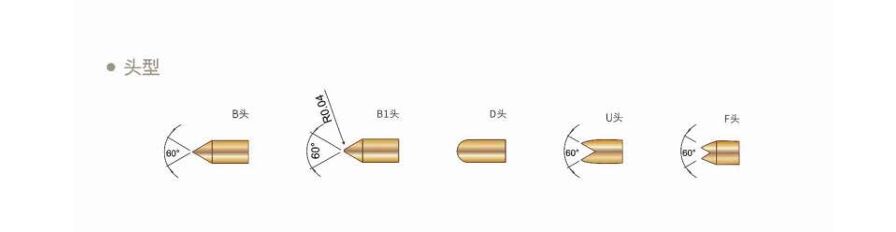

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment

Contact us to request samples or a quotation for your specific application requirements.
