Name: Spring Loaded Probe Pin Double Ended | China Pogo Pin Supplier
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Home > Products > Spring Test Probes >

Spring Loaded Probe Pin Double Ended | China Pogo Pin Supplier

spring loaded double ended probe pin

pogo pin test probe

spring test probes with warranty

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Request A Quote

Spring Loaded Probe Pin Double Ended | China Pogo Pin Supplier

Product Details

Product Name:

Spring Test Probe

Barrel:

P.B., Gold-palted

Bottom Plunger:

BeCu/SK4,gold -plated

TOP Plunger:

SK4(Be Cu)/Gold Plated

Spring:

SWPB(SUS)/Gold Plated

Availability:

Custom Sizes Available

Coating:

Gold Plated

Current Rating:

Contact Resistance:

100 Mohms Max

Bandwidth:

-0.03dB @ 19.6GHz

Inductace:

1.33nH

Captance:

1.66pF

Full Stroke:

2.2mm

Rated Stroke:

1.0mm

Spring Force:

38grams@1.0mm

Mechanical Life Exceeds:

200K

Highlight:

spring loaded double ended probe pin

pogo pin test probe

spring test probes with warranty

Payment & Shipping Terms

Minimum Order Quantity

3000pcs

Price

999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

Get Best Price

China Supplier Double ended Pogo Pin Spring Loaded Probe UF-FT064BD816-001

Get Best Price

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

Get Best Price

Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection

Get Best Price

Contact Now

Product Description

YOUFU UF-FTO75BD865-003 Dual Head Spring Loaded Pogo Pins

High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

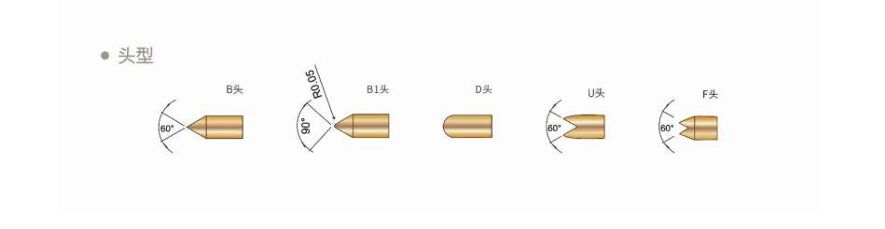

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

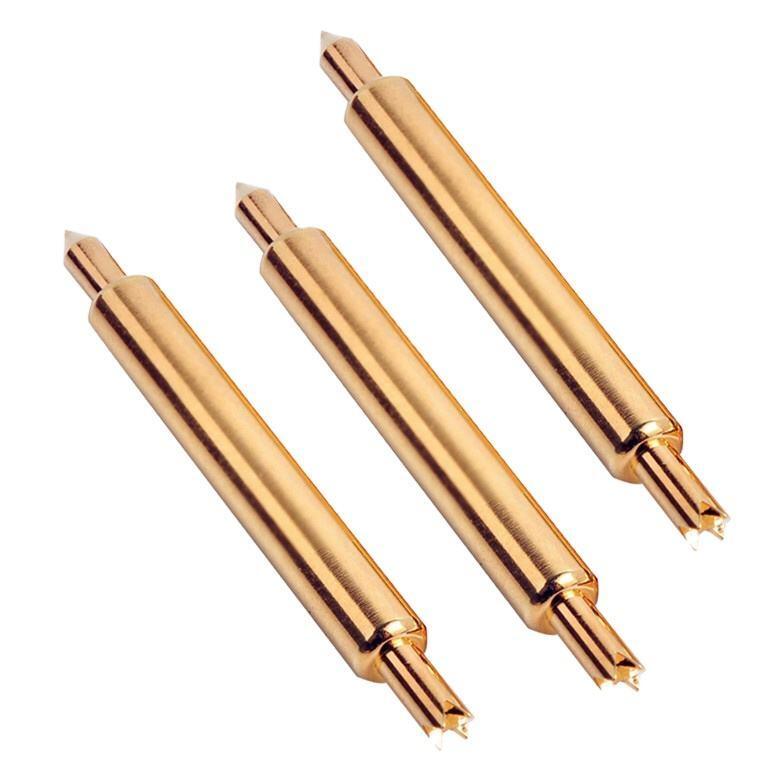

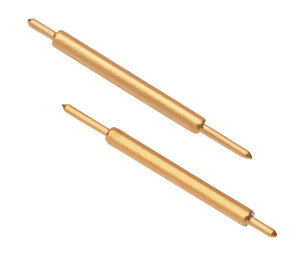

Product Images

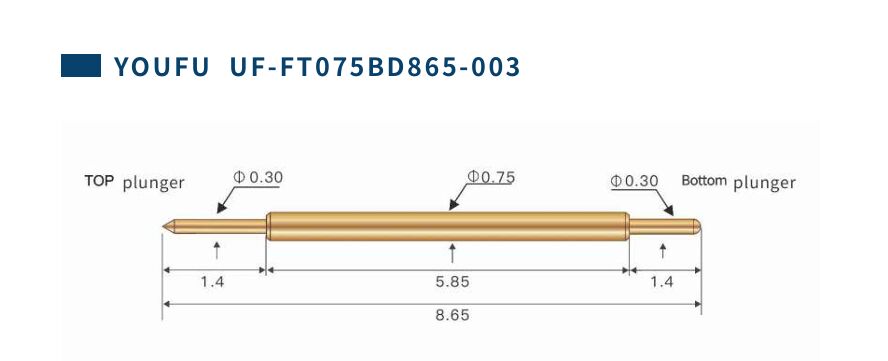

Detailed Component Illustration

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
