Name: Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Home > Products > Gold Plated Tungsten Wire >

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

gold plated tungsten wire for electronics

premium micron tungsten wire

scientific research tungsten wire

Brand Name:

WINNER

Certification:

ISO9100

Model Number:

TW011

Request A Quote

Product Details

Product Type:

Bonding Wire

Coating Thickness:

0.0003mm

Material:

Tungsten

Coating:

Gold

Length Meters:

500/1000

Bonding Method:

Ultrasonic

Temperature Range:

-40°C To 200°C

Surface Finish:

Bright

Conductivity:

98%

Package Size:

100 Meters

Bond Strength:

High

Package:

Spool

Highlight:

gold plated tungsten wire for electronics

premium micron tungsten wire

scientific research tungsten wire

Payment & Shipping Terms

Minimum Order Quantity

1PC

Price

999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

High Purity Gold Plated Micrcon Tungsten Filament Wire Available In Affordable Price

Get Best Price

Video

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Get Best Price

Video

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

Get Best Price

High-frequency Customized Diameter Gold Plated Coated Tungsten Spooled Wire

Get Best Price

Contact Now

Product Description

Gold-plated tungsten wire, the surface condition is golden shiny tungsten wire, high temperature resistance, high melting point, low coefficient of thermal expansion, which is suitable for the use of tungsten wire and tungsten heaters
Gold-plated tungsten wire looks better, and the surface is brighter than black tungsten/scheelite wire and sprayed tungsten wire. In a deeper sense, the stability of gold-plated tungsten wire is much higher than that of ordinary tungsten wires
Uses: Gold-plated tungsten wire is used to replace the corrosive tungsten wire and tungsten aluminum wire for photocopier electrodes
Gold-plated tungsten wire can also be used as an ideal electronic material, which can be widely used in scientific research fields such as high energy physics and meteorology

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

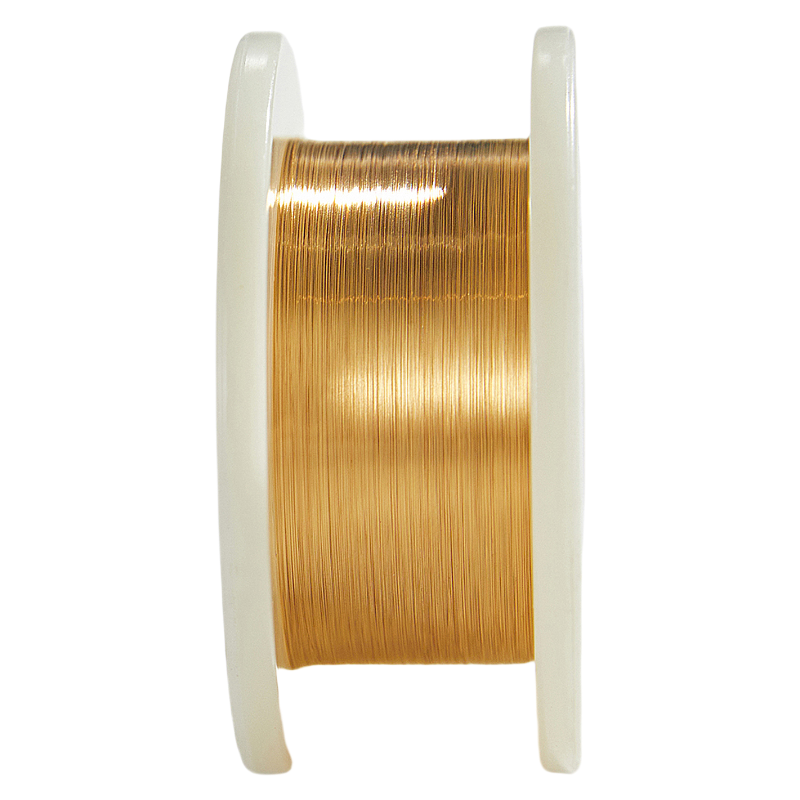

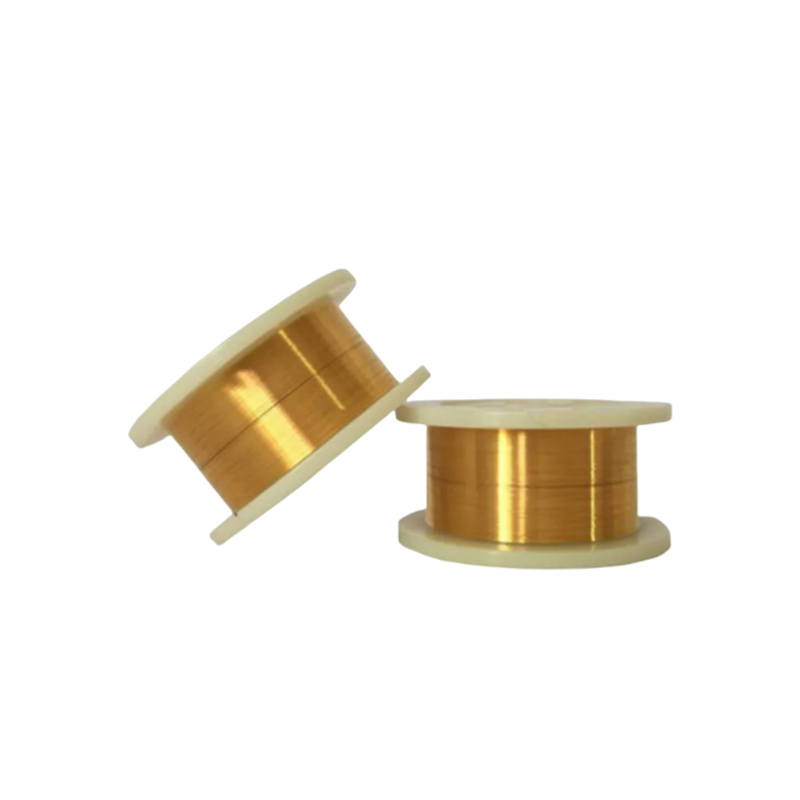

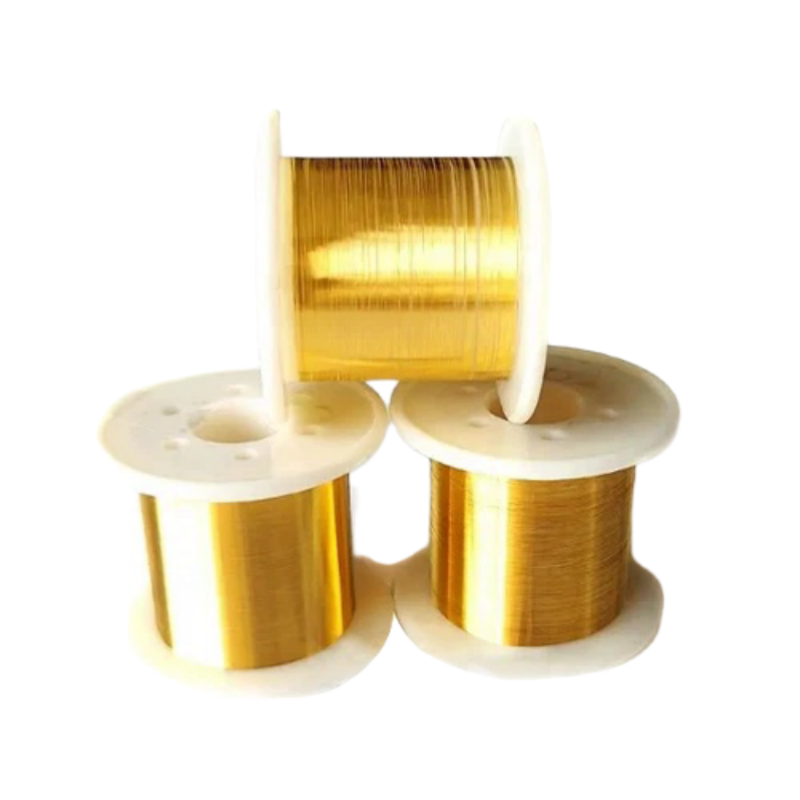

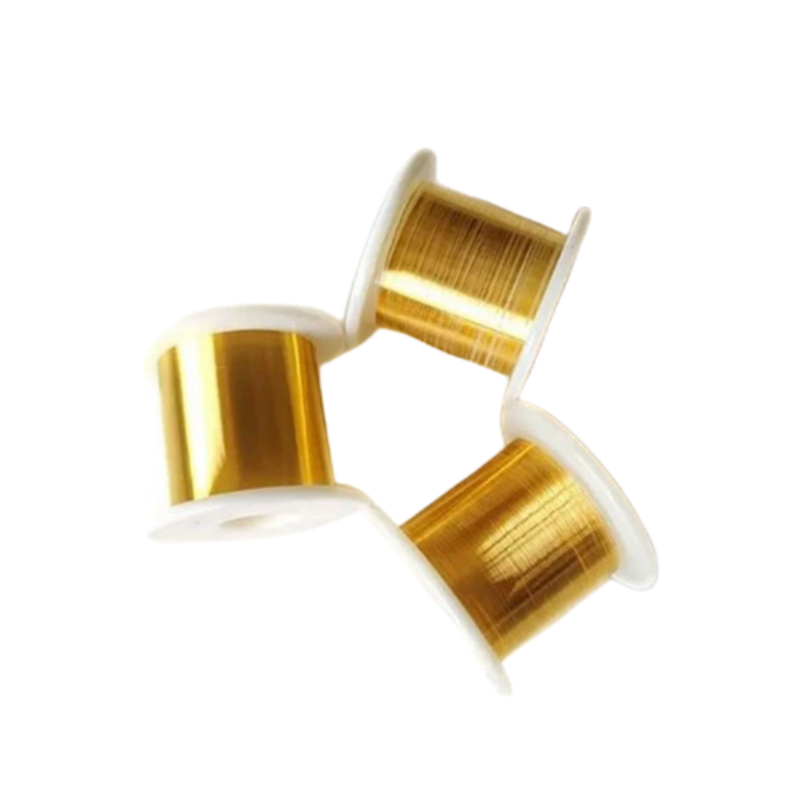

Product Images
