Home > Products > Gold Plated Molybdenum Wire >

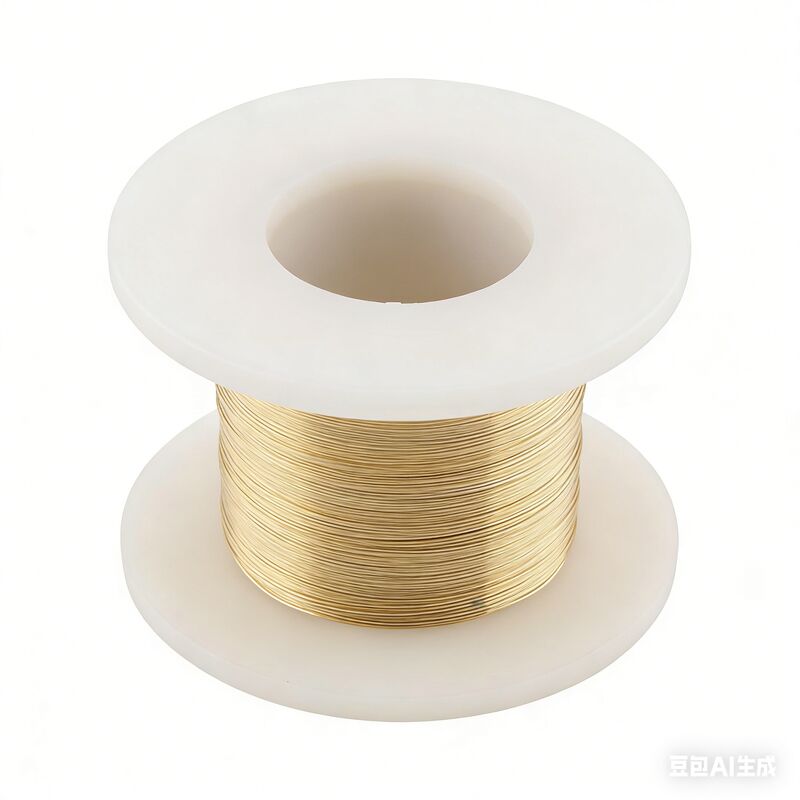

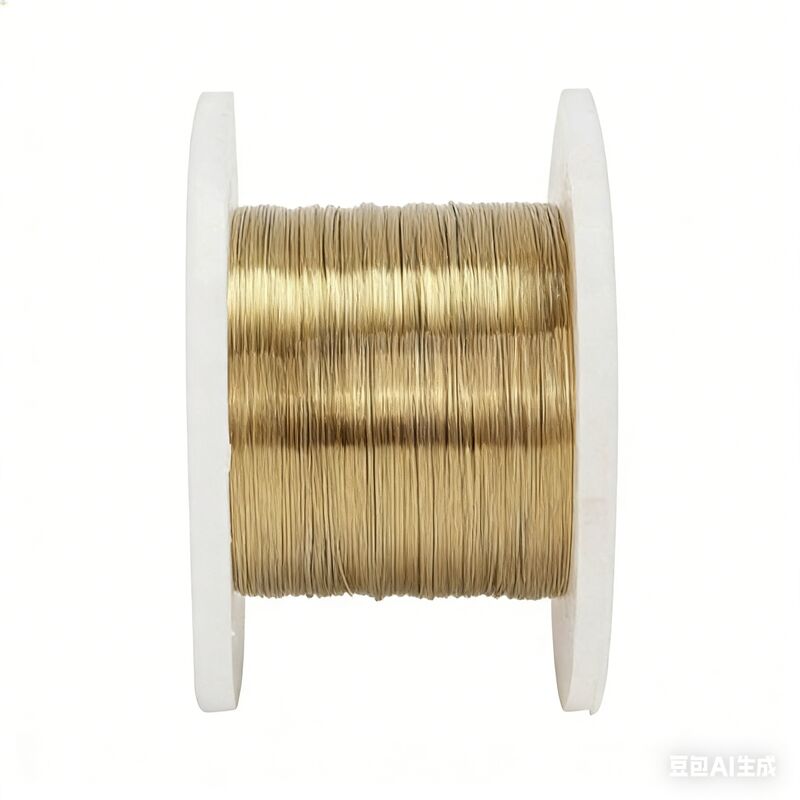

Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications

Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications

gold plated molybdenum wire

conductive molybdenum wire for industry

high strength gold plated wire

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Model Number:

MW001

Contact Us
Request A Quote
Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications
Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications
Product Details
Application:
Semiconductor Packaging, Microelectronics, Medical Devices
Package:
Spool
Corrosion Resistance:
High
Material:
Copper
Wire Diameter:
0.001 Inches
Bond Strength:
High
Length Meters:
500/1000
Product Type:
Bonding Wire
Coating Thickness:
0.001mm
Coating:
Gold
Purity:
99.999%
Bonding Method:
Ultrasonic
Temperature Range:
-40°C To 200°C
Surface Finish:
Bright
Conductivity:
98%
Package Size:
100 Meters
Highlight:

gold plated molybdenum wire

,

conductive molybdenum wire for industry

,

high strength gold plated wire

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
999
Packaging Details
Roll, Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price High Quality 15 Micro Molybdenum Wires Customized With Durable Gold Coating Top Metal Products online Video

High Quality 15 Micro Molybdenum Wires Customized With Durable Gold Coating Top Metal Products

Get Best Price
Good price Customized Gold Coated Molybdenum Wires 15μm/17μm/25μm/27μm Light Weight High Strength Good Conducting Metals Metal online Video

Customized Gold Coated Molybdenum Wires 15μm/17μm/25μm/27μm Light Weight High Strength Good Conducting Metals Metal

Get Best Price
Good price Molybdenum wire, gold plated, 0.025mm (0.001in) dia, 99.95% online Video

Molybdenum wire, gold plated, 0.025mm (0.001in) dia, 99.95%

Get Best Price
Good price WholesaleGold-plated Molybdenum Wires for Space Applications online Video

WholesaleGold-plated Molybdenum Wires for Space Applications

Get Best Price
CONTACT US
Contact Now
Product Description
Gold plated molybdenum wire is manufactured via a precision electroplating process that bonds a uniform, dense gold coating to a high-purity molybdenum wire core, with strict pretreatment and post-treatment steps to ensure coating adhesion and performance. The core manufacturing steps are as follows:

  1. Molybdenum wire pre-treatment: High-purity molybdenum wire is cleaned (degreasing, pickling) to remove surface oil, oxide film and impurities, then activated to enhance surface adhesion for gold plating.
  2. Electroplating core process: The pretreated molybdenum wire is immersed in a professional gold plating electrolyte, and a controlled electroplating current is applied to deposit a thin, even gold layer on the molybdenum surface—thickness is precisely adjusted based on application requirements (typically micron-level).
  3. Post-plating finishing: The gold-plated wire is rinsed to remove residual electrolyte, then dried and heat-treated at a low temperature to improve the bonding strength between the gold coating and molybdenum core, preventing peeling.
  4. Quality testing: The finished wire is inspected for gold layer uniformity, thickness, adhesion, electrical conductivity and dimensional accuracy to meet industrial precision standards.

The entire process is conducted in a dust-free, controlled environment to avoid surface contamination, ensuring the final product’s corrosion resistance, low contact resistance and mechanical stability.

Technical Parameters


Items

Data

Chemical analysis (wt%)

Mo ≥ 99.9%, Au : 99.99%

Core wire diameter

25μm/27μm in stock, customized

Coating thickness

0.2 ~ 0.8μm

Max. using temperature

450℃

Anti-temperature shock

bear -196 ~ 250℃ fast cyclical impact


Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications 0

Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications 1

Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications 2

Gold Plated Molybdenum Wire combining the advantages of molybdenum strength and gold conductivity for industrial applications 3


Tags：

Electronics Gold Plated Molybdenum Wire

0.08mm Golden Plated Molybdenum Wire

LCD Golden Plated Molybdenum Wire
