0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

ultra fine gold plated tungsten wire

high oxidation resistance micro conductor

0.003mm gold plated tungsten wire

Brand Name:

WINNER

Certification:

ISO9100

Model Number:

TW011

Contact Us
Request A Quote
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor
Product Details
Coating Thickness:
0.0003mm
Material:
Tungsten
Wire Diameter:
0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length:
1000/2000 Meter
Melting Point:
3410 °C
Boiling Point:
5660 °C
Density:
19.3 G/cm3
Electrical Resistivity:
4.9 μΩ-cm
Highlight:

ultra fine gold plated tungsten wire

,

high oxidation resistance micro conductor

,

0.003mm gold plated tungsten wire

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
999
Packaging Details
Roll, Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price OEM ODM 0.003mm Ultra Fine Gold Coated Tungsten Wire For Micro Medical Industry online Video

OEM ODM 0.003mm Ultra Fine Gold Coated Tungsten Wire For Micro Medical Industry

Get Best Price
Good price 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor online Video

0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

Get Best Price
Good price High Purity Tungsten 0.003mm Ultra Fine Gold Plated Wire Low Resistivity Micro Wire online Video

High Purity Tungsten 0.003mm Ultra Fine Gold Plated Wire Low Resistivity Micro Wire

Get Best Price
Good price 0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire online Video

0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire

Get Best Price
Contact Us
Contact Now
Product Description
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor
Excellent high oxidation and corrosion resistance, fine and smooth surface, reliable performance as micro conductor in high-temperature and harsh working environment.
Product Specifications
Material Tungsten
Purity Wu≥ 99.99%
Gold-plated thickness 0.3um
Wire diameter 0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length 1000/2000 meter (cut from roll)
Gold Plated Tungsten Wire Properties (Theoretical)
Compound Formula W
Molecular Weight 183.84
Appearance Metallic wire
Melting Point 3410 °C
Boiling Point 5660 °C
Density 19.3 g/cm³ (25 °C)
Solubility in H₂O N/A
Electrical Resistivity 4.9 μΩ-cm, (20 °C)
Exact Mass 183.951 g/mol
Monoisotopic Mass 183.951 g/mol
Key Features
  • Shiny golden surface condition - brighter than black or white tungsten wire
  • Exceptional high temperature resistance and high melting point
  • Low coefficient of thermal expansion
  • Superior corrosion resistance compared to ordinary tungsten wire
Applications
  • Electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire
  • Ideal corrosion-resistant electron emission material
  • Applications in high-energy physics, meteorology, and other scientific research fields
Product Images
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0

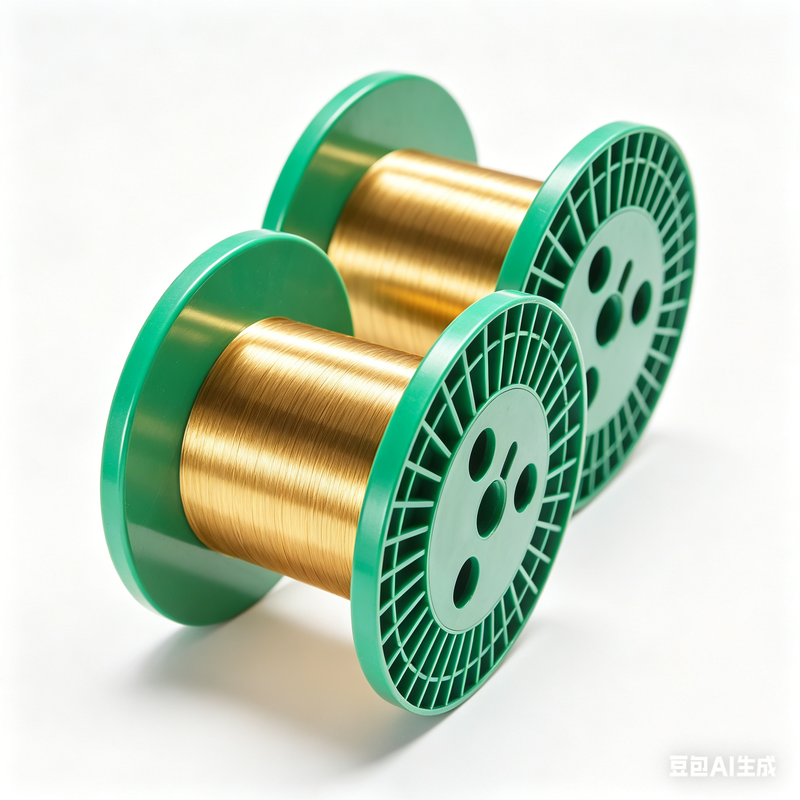

Gold-plated tungsten wire roll close-up
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 1

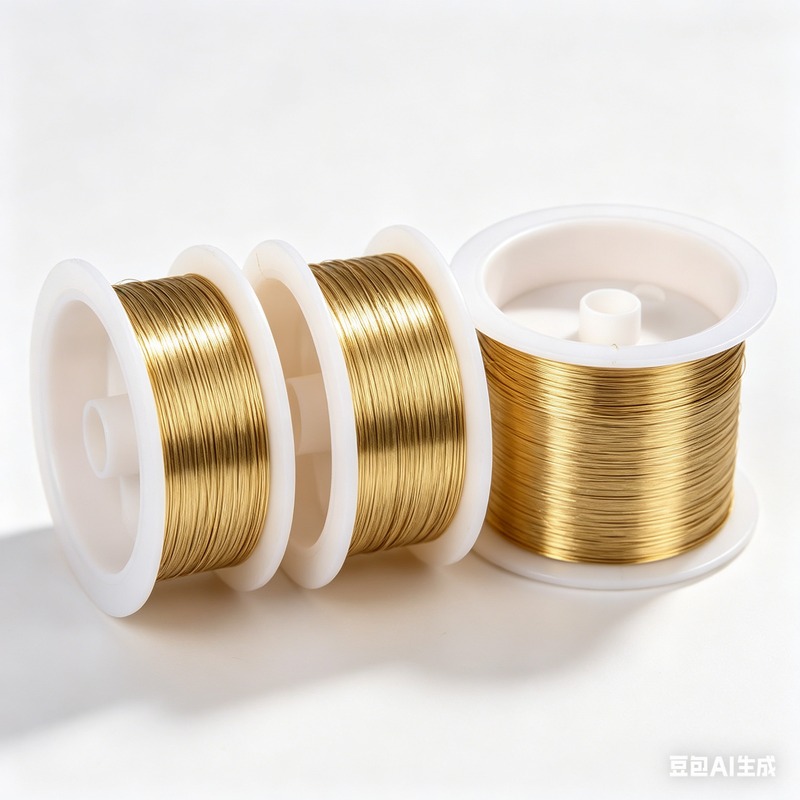

Gold-plated tungsten wire sample
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 2
Diameter comparison showing various thicknesses
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 3

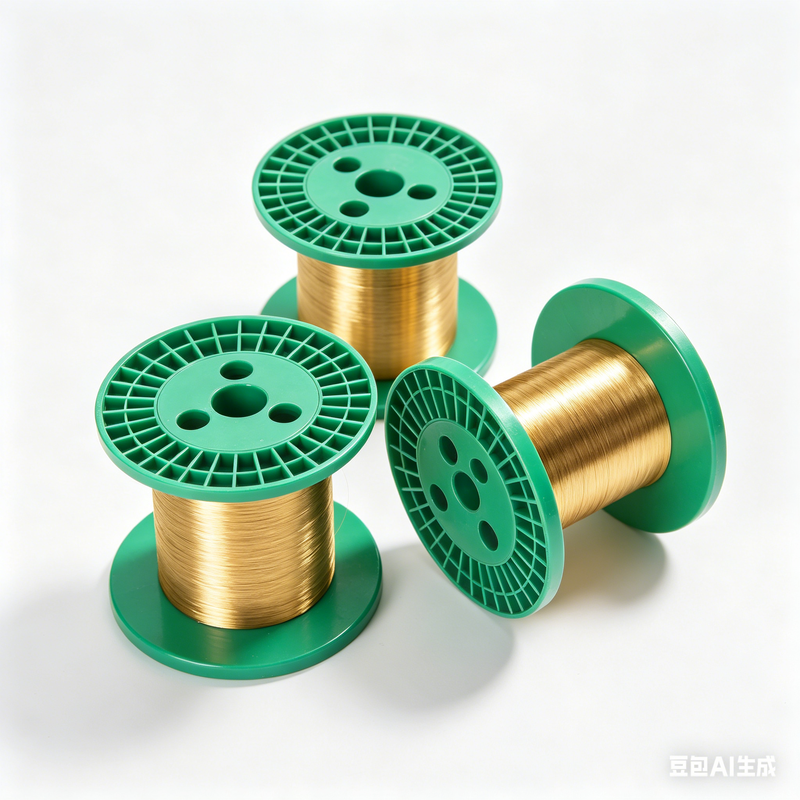

Spool packaging
