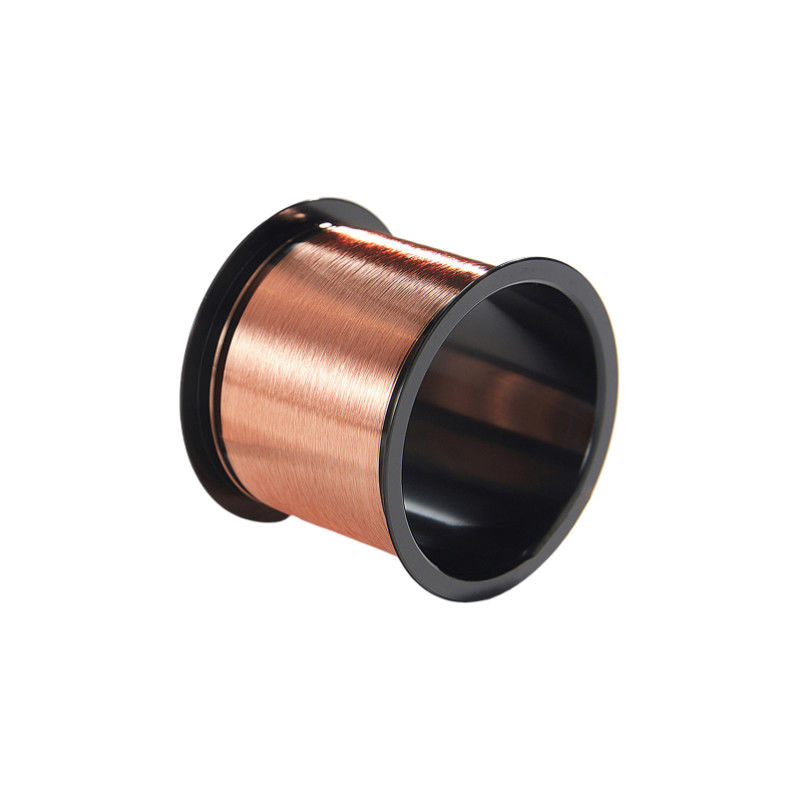

Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications

Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications

Communications Copper Bonding Wire

0.01 mm Copper Bonding Wire

Good loop stability Copper Bonding Wire

Place of Origin:

China

Brand Name:

WINNER

Certification:

ISO 9001, ISO 14001, RoHS

Model Number:

WCBW-1

Contact Us
Request A Quote
Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications
Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications Ultra Fine Wire Good Loop Stability 0.01 Mm Copper Bonding Wire For Communications
Product Details
Density:
8.96 G/cm3
Bond Strength:
High
Elongation:
1% - 50%
Purity:
99.999%
Bonding Method:
Ultrasonic, Thermocompression, Thermosonic
Diameter:
0.01mm - 0.4mm
Corrosion Resistance:
High
Melting Point:
1064°C - 660°C
Highlight:

Communications Copper Bonding Wire

,

0.01 mm Copper Bonding Wire

,

Good loop stability Copper Bonding Wire

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
1~999
Packaging Details
Roll, Neutrial Packing or with OEM LOGO
Delivery Time
5~8 working days.
Payment Terms
T/T, Western Union, L/C
Supply Ability
1000000 rolls per month
RELATED PRODUCTS
Good price Ultra Fine Wire 0.01mm Diameter Gold Bonding Wire For Semiconductor Packaging online Video

Ultra Fine Wire 0.01mm Diameter Gold Bonding Wire For Semiconductor Packaging

Get Best Price
Good price High tensile test performance Ultra Fine Wire Gold Bonding Wire for semiconductor packaging and assembly processes online Video

High tensile test performance Ultra Fine Wire Gold Bonding Wire for semiconductor packaging and assembly processes

Get Best Price
Good price 99.999% Purity 0.01mm Diameter Ultra Fine Gold Bonding Wire for Automotive and Aerospace applications online Video

99.999% Purity 0.01mm Diameter Ultra Fine Gold Bonding Wire for Automotive and Aerospace applications

Get Best Price
Good price Premium Ultra Fine Wire Gold Bonding Wire for Advanced Electronic Bonding Applications online Video

Premium Ultra Fine Wire Gold Bonding Wire for Advanced Electronic Bonding Applications

Get Best Price
Contact Us
86-15818576616
sales@winner-sc.com
Contact Now
Product Description

Ultra Fine wire Good loop stability 0.01 mm Copper Bonding Wire for Communications


Characteristics
* High conductivity
* High tensile strength with high elongation
* Good loop stability
* Significantly reduced formation of intermetallic phases
* Very good ball formation under protective gas

Description of Copper Bonding Wire
The Copper bonding wire is material for semiconductor packaging which has excellent electrical conductivity, thermal conductivity, mechanical properties, and chemical stability. This product is used as an inner lead for packaging and is one of the essential materials in the manufacturing process of integrated circuits and semiconductor separators. The Copper bonding wire has the advantages of low price, good mechanical properties, and high electrical conductivity. Winner can provide Copper bonding wire with different wire diameters from 15um-50um according to customer requirements.

Applications include:
* Computer : PC, Tablets, Servers & systems, Consumer
* Electronics : Smartphones & phones, TVs, Imaging devices, Wearable electronics
* Automotive : Body, Safety, Infotainment, Chassis, Powertrain, Security
* Communications : Wireless, Wired, Satellite, NFC
* Energy : Generation, Transmission & distribution, Storage

Dia EL(%) BL(gf)
mil um 4N 5N 4N 5N
WCBW-1 WCBW-2 WCBW-3 WCBW-4 WCBW-5 WCBW-6 WCBW-7 WCBW-8
0.6 15 3-15 3-15 3-16 3-17 >3.0 >3.0 >3.0 >3.0
0.7 18 3-17 3-17 3-18 4-19 >3.0 >3.0 >3.5 >4.0
0.8 20 4-18 4-18 4-19 5-20 >4.0 >4.5 >5.0 >5.0
0.9 23 6-20 6-20 6-21 6-22 >5.0 >6.0 >6.0 >6.5
1.0 25 8-22 8-23 8-24 8-24 >6.0 >7.0 >7.0 >8.0
1.2 30 9-23 9-24 9-25 9-26 >8.0 >8.5 >8.0 >10.0
1.3 33 9-24 10-25 10-26 10-27 >10.0 >11.0 >10.0 >12.0
1.5 38 10-25 10-26 10-27 11-28 >12.0 >12.0 >12.0 >14.0
1.7 43 10-26 11-28 10-30 11-30 >15.0 >16.0 >15.0 >18.0
2.0 50 12-28 12-30 12-32 12-34 >20.0 >20.0 >20.0 >20.0


The Advantages of Copper Bonding Wire Cost Savings
The relatively low cost of copper is one of the reasons for its appeal as an alternative interconnect material. By replacing gold wires with copper material, thus replacing the precious metal part, significant cost savings are possible. In applications that require increased wire diameters, the usage of copper bears a disproportionately high impact on the saving effect. Superior Performance of Copper Wires Copper exhibits significantly better conductivity than gold or aluminum. Therefore better heat dissipation and increased power ratings are attainable with thinner wire diameters. Copper possesses higher mechanical properties compared to gold. Therefore it displays excellent ball neck strength and high loop stability during molding or encapsulation.



Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 0

1.What kind of Enameled copper wire do Winner produce?

We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.



2.What's diameters available of the Enamelled copper wire ?

We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.



3.What's selfbonding enameled copper wire?

Selfbonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.This adhesive has a bonding feature, which is activated

by heat or solvents.

Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.

The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications

as bobbins, tape, varnishing, or impregnation may be eliminated.



4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?

Of course you can!

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 1

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 2

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 3

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 4

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 5
