Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing

Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing

24.5 mm Length Spring Test Probe

1.5 mm Needle Diameter Pogo Pin

4 mm Full Stroke PCB Test Probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Contact Us
Request A Quote
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing
Product Details
Product Name:
Standard Size Test Probe
Plunger:
BeCu
Barrel:
Brass
Spring:
Stainless Steel
Availability:
Custom Sizes Available
Coating:
Gold Plated
MOQ:
100 Pcs
Highlight:

24.5 mm Length Spring Test Probe

,

1.5 mm Needle Diameter Pogo Pin

,

4 mm Full Stroke PCB Test Probe

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
999
Packaging Details
Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac online

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

Get Best Price
Good price Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact online

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

Get Best Price
Good price 100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing online

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

Get Best Price
Good price P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing online

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

Get Best Price
Contact Us
Contact Now
Product Description

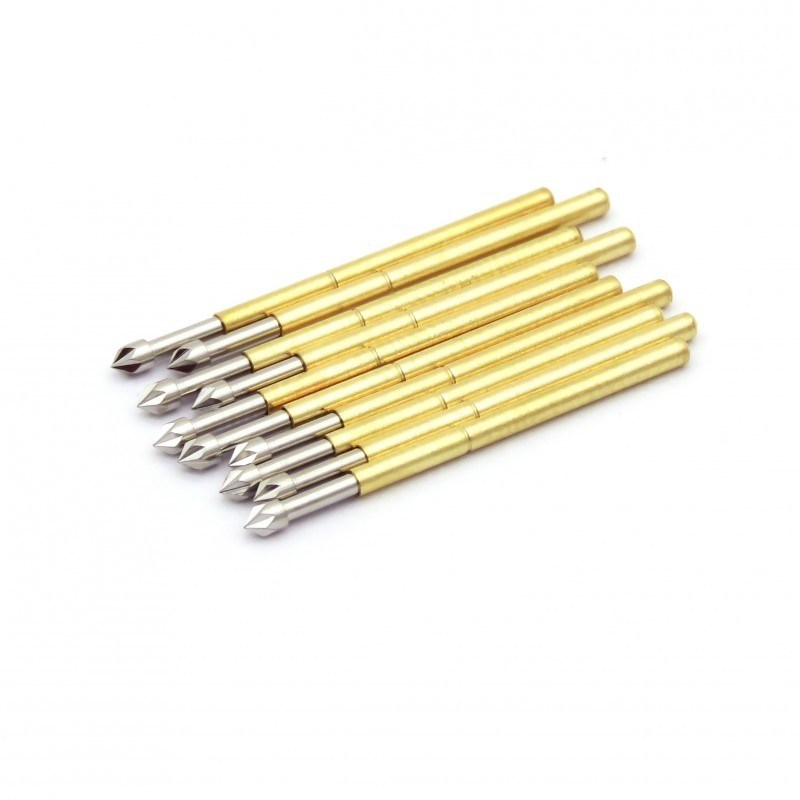

Spring-loaded Test Needle for Connecting and Testing Modules Without Soldering
Spring-loaded test needle for connecting and testing modules without soldering. The 24.5 mm long needle ensures a stable connection with test pads. Ideal for testing or programming modules without requiring goldpin connector soldering.
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing 0
Product Specifications
Features
  • Model: P160-LM2
  • Full stroke: 4 mm
  • Current: 3 A
  • Resistance: 50 mΩ
  • Color: gold + silver
  • Needle diameter: 1.5 mm
  • Shank diameter: 1 mm
  • Needle length: 24.5 mm
  • Needle cover diameter: 1.36 mm
  • Drill size: 1.7 mm
Included
  • 10 x pogo pins P160-LM2
Test Probe Selection Guide
Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing 1
Detailed illustration of test probe components and construction
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing 2
Various test probe tip types
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing 3
Our probe manufacturing facility
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing 4
Quality control inspection
Spring Test Probe with 24.5 mm Length and 1.5 mm Needle Diameter for 4 mm Full Stroke PCB Testing 5
Packaged probes ready for shipment
