Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

6.4mm Full Stroke Spring Test Probe

4.3mm Rated Stroke Pogo Pin

1.0N Spring Force ICT Test Probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Contact Us
Request A Quote
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications
Product Details
Product Name:
Standard Size Test Probe
Plunger:
BeCu/SK4,gold -plated
Barrel:
Bronze , Gold-palted
Spring:
SWP, Au On Ni Palted
Availability:
Custom Sizes Available
Coating:
Gold Plated
MOQ:
3000pcs
Receptacle:
Brass Gold Plated
Current Rating:
3amps
Contact Resistance:
50 Millionhms Max
Full Stroke:
6.4mm
Rated Stroke:
4.3mm
Spring Force:
1.0N
CEM1:
1.0mm(.039)
FR4:
1.0mm(.039)
Standard:
-40℃-+80℃
Special Design"C":
-100℃-+200℃
Highlight:

6.4mm Full Stroke Spring Test Probe

,

4.3mm Rated Stroke Pogo Pin

,

1.0N Spring Force ICT Test Probe

Payment & Shipping Terms
Minimum Order Quantity
3000pcs
Price
999
Packaging Details
Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price Double Ended Spring Loaded Pin for Automated Test Equipment (ATE) online

Double Ended Spring Loaded Pin for Automated Test Equipment (ATE)

Get Best Price
Good price Precision Pogo Pin Probe Double Ended for Electronic Testing online

Precision Pogo Pin Probe Double Ended for Electronic Testing

Get Best Price
Good price High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT online

High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

Get Best Price
Good price China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available online

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

Get Best Price
Contact Us
Contact Now
Product Description
Customized Brass Barrel Stainless Steel Spring Test Probe YF050 for In-Circuit-Test (ICT)
Production Specifications
Technical specifications of YF050 test probe
Product Images

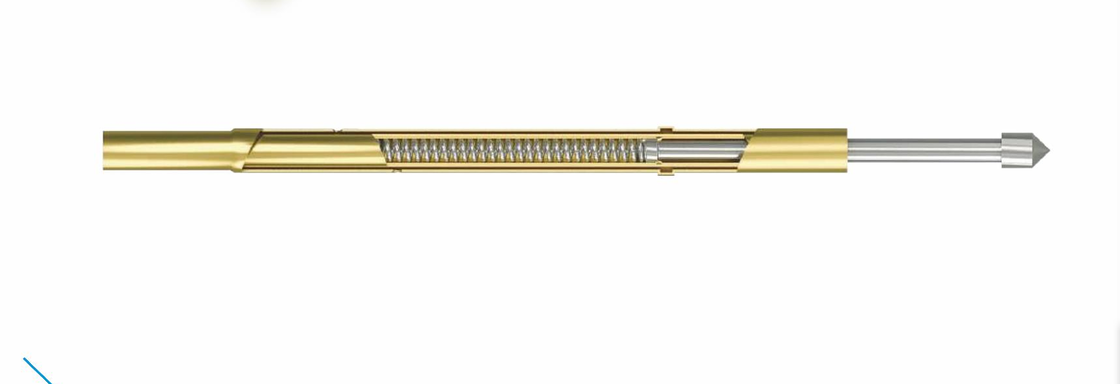

YF050 test probe close-up view

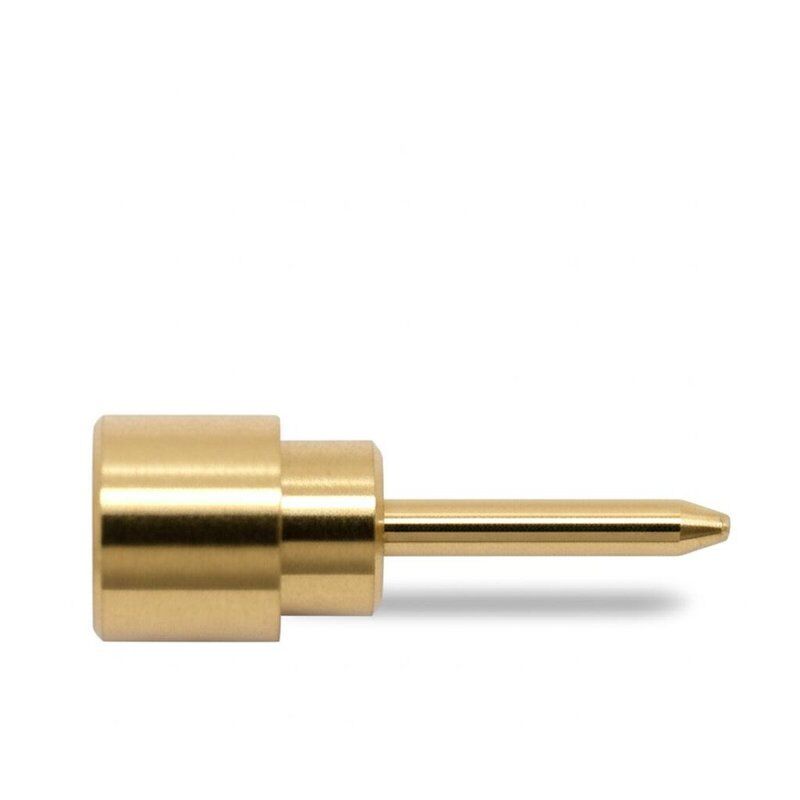

YF050 test probe side view
YF050 test probe top view

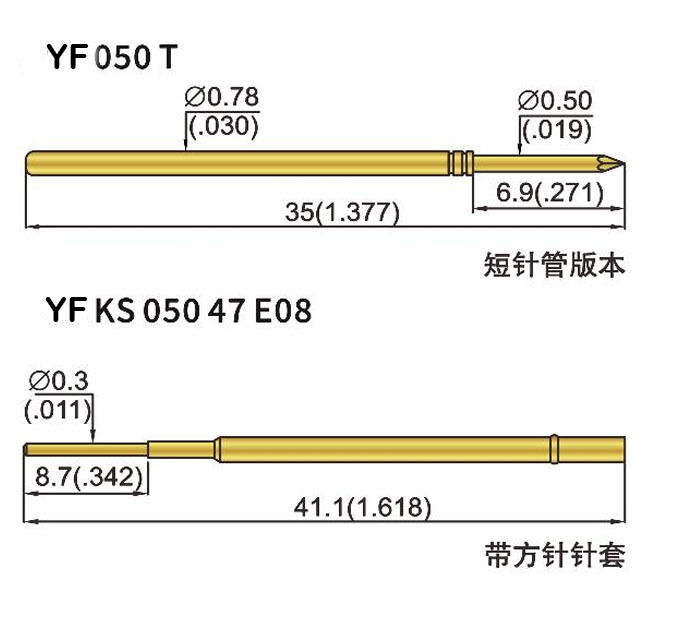

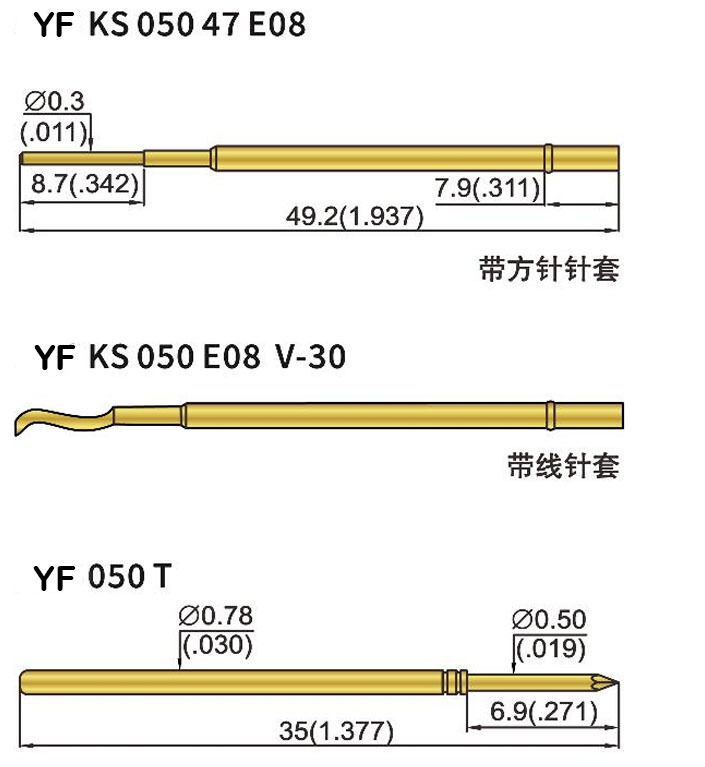

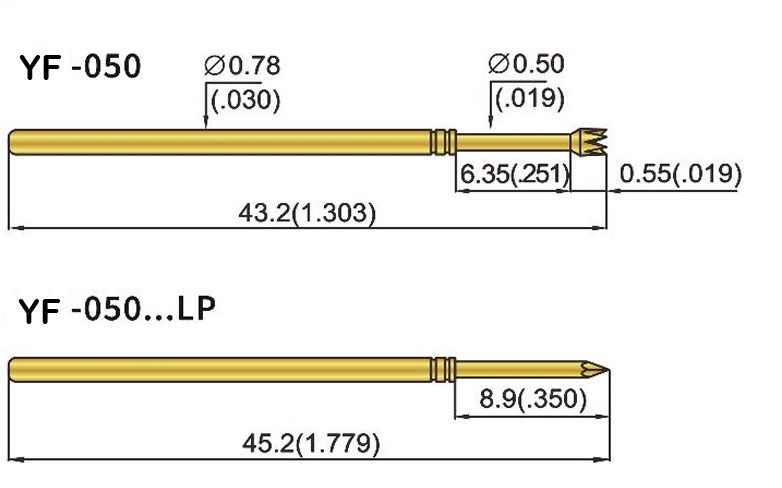

YF050 test probe measurement details
YF050 test probe in testing position
Detailed Component Illustration

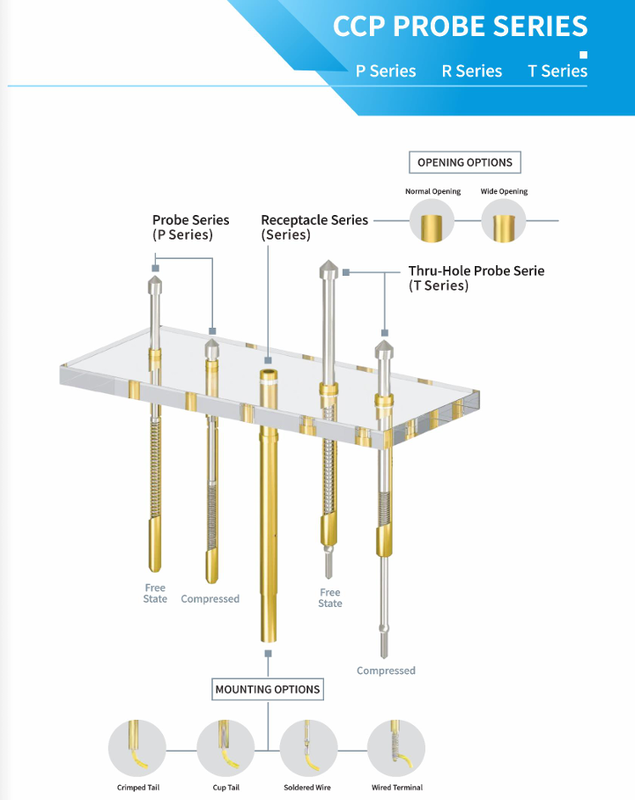

Comparison of different test probe tip types and configurations
Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
State-of-the-art manufacturing facility producing electronic probes
Our probe manufacturing facility
Quality control inspection process for test probes
Quality control inspection
Packaged test probes prepared for secure shipment
Packaged probes ready for shipment
