Name: CHINA Supply YF-100 Brass Material Spring Contact Probe Pin
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Home > Products > Spring Test Probes >

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Request A Quote

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Product Details

Product Name:

Standard Size Test Probe

Plunger:

BeCu/SK4,gold -plated

Barrel:

Bronze , Gold-palted

Spring:

SWP, Au On Ni Palted

Availability:

Custom Sizes Available

Coating:

Gold Plated

MOQ:

3000pcs

Receptacle:

Brass Gold Plated

Current Rating:

3-5amps

Contact Resistance:

50 Millionhms Max

Full Stroke:

6.35mm

Rated Stroke:

4.3mm

Spring Force:

1.0/2.0/3.0N

CEM1:

1.7mm(.0.67)

FR4:

1.75mm(.0.69)

Standard:

-40℃-+80℃

Special Design"C":

-100℃-+200℃

Payment & Shipping Terms

Minimum Order Quantity

3000pcs

Price

999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

Get Best Price

2.36mm Spring Test Probe with 9 Claws and 100 Pcs Brass Barrel Spring Loaded Test Pin for Industrial Testing

Get Best Price

Custom Sizes Brass Barrel Stainless Steel Spring Test Probe for Precision PCB Testing

Get Best Price

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

Get Best Price

Contact Now

Product Description

Customized Brass Barrel Stainless Steel Spring Test Probe YF100 for In-Circuit-Test (ICT)

Production Specifications

Product Images

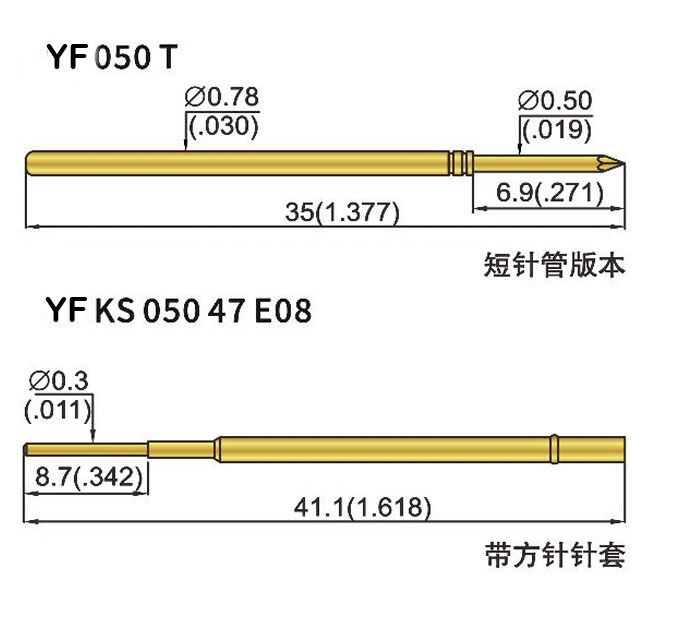

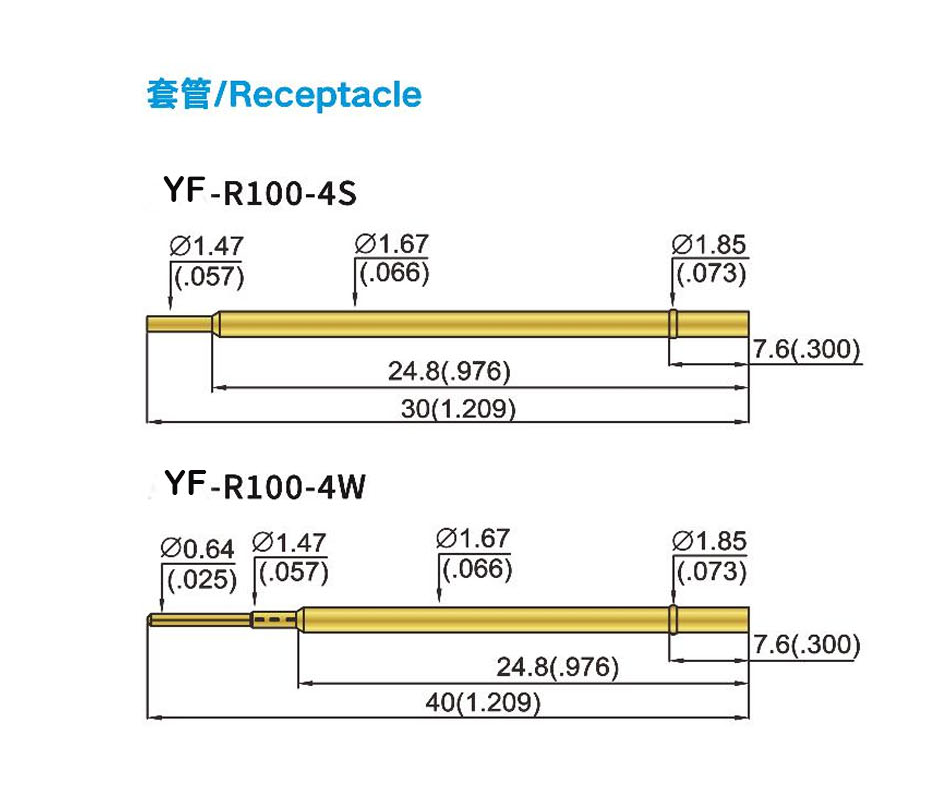

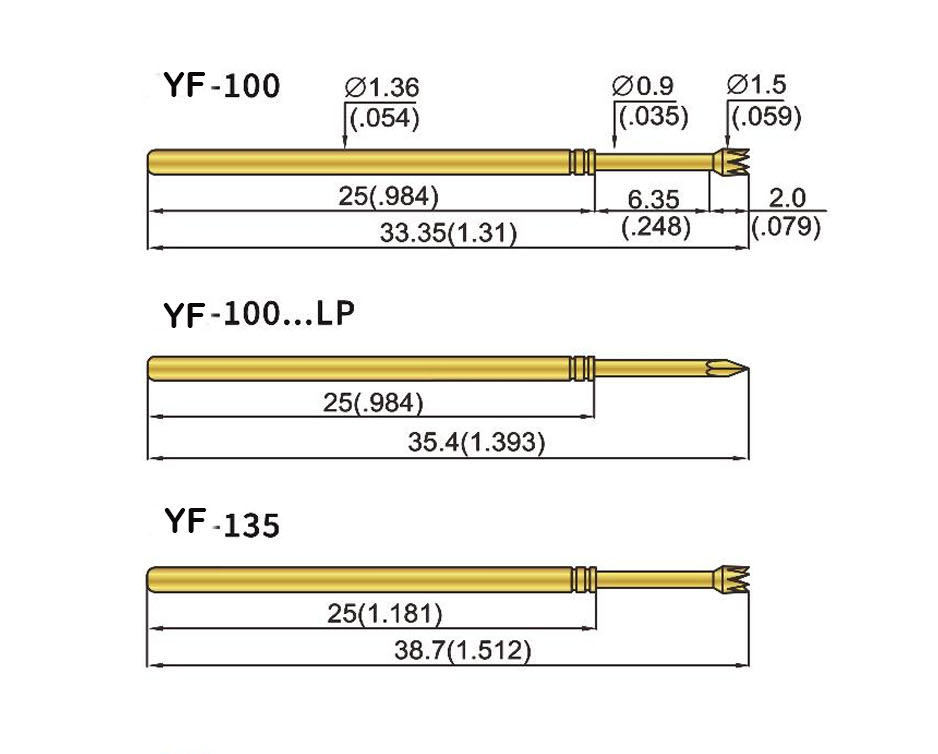

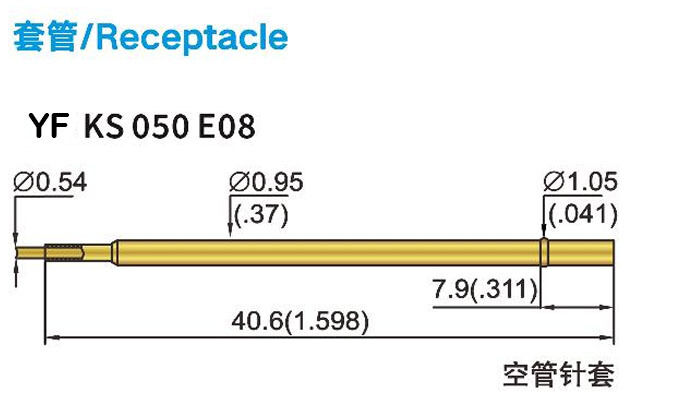

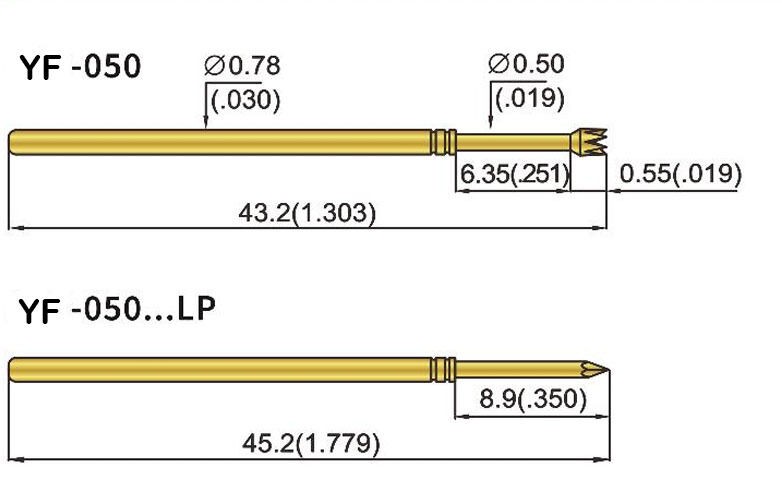

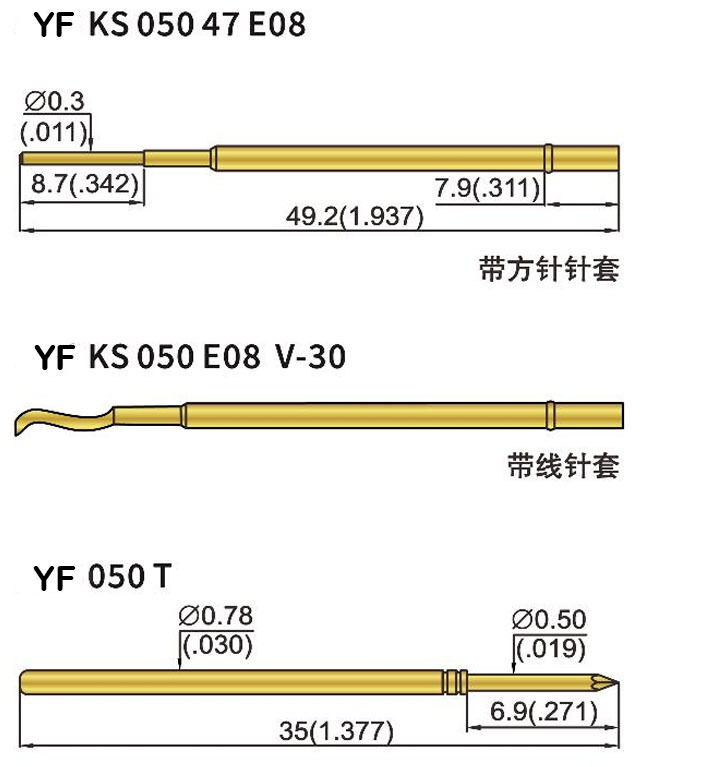

Detailed Component Illustration

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
