Name: Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Home > Products > Spring Test Probes >

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Brass Barrel Spring Test Probe

Stainless Steel Spring Pogo Pin

1.0/2.0/3.0N Spring Force ICT Test Probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Request A Quote

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Product Details

Product Name:

Standard Size Test Probe

Plunger:

BeCu/SK4,gold -plated

Barrel:

Bronze , Gold-palted

Spring:

SWP, Au On Ni Palted

Availability:

Custom Sizes Available

Coating:

Gold Plated

MOQ:

3000pcs

Receptacle:

Brass Gold Plated

Current Rating:

5amps

Contact Resistance:

50 Millionhms Max

Full Stroke:

6.4mm

Rated Stroke:

4.3mm

Spring Force:

1.0/2.0/3.0N

CEM1:

2.7mm(.0.67)

FR4:

2.72mm(.0.69)

Standard:

-40℃-+80℃

Special Design"C":

-100℃-+200℃

Highlight:

Brass Barrel Spring Test Probe

Stainless Steel Spring Pogo Pin

1.0/2.0/3.0N Spring Force ICT Test Probe

Payment & Shipping Terms

Minimum Order Quantity

3000pcs

Price

999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Get Best Price

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Get Best Price

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Get Best Price

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Get Best Price

Contact Now

Product Description

Spring Contact Probe Spring Test Probe YF-004

Customized Brass Barrel Stainless Steel Spring Test Probe YF-004 for In-Circuit-Test (ICT)

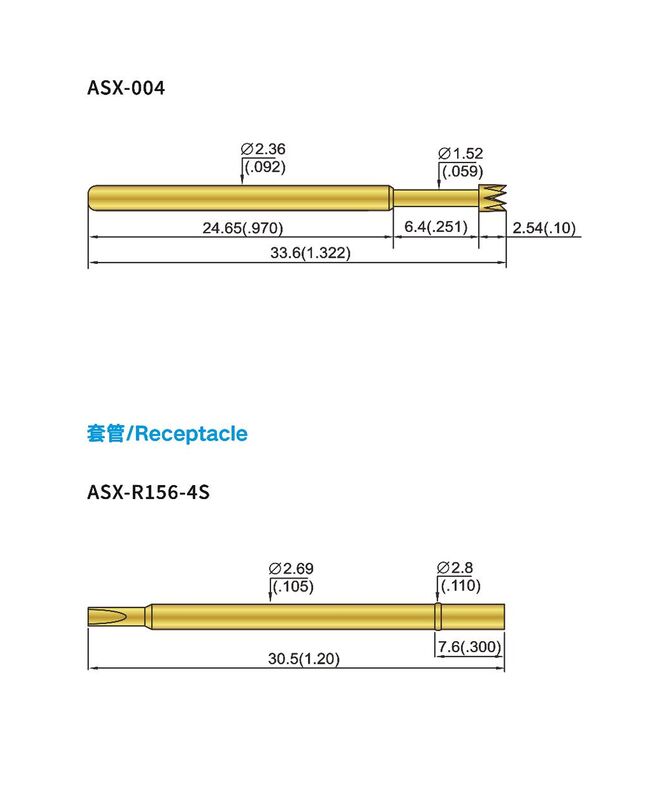

Production Specifications

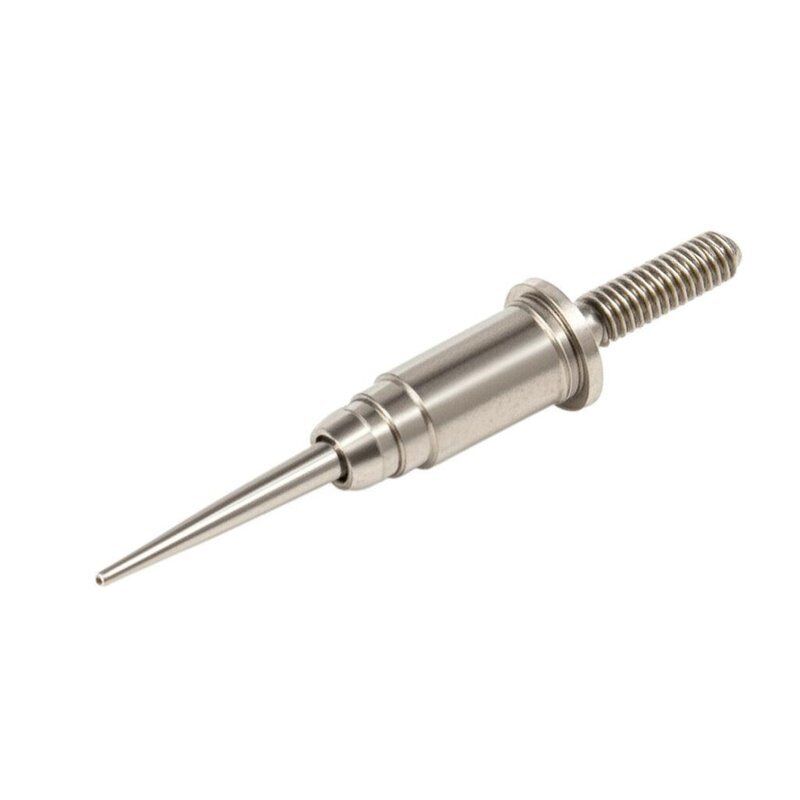

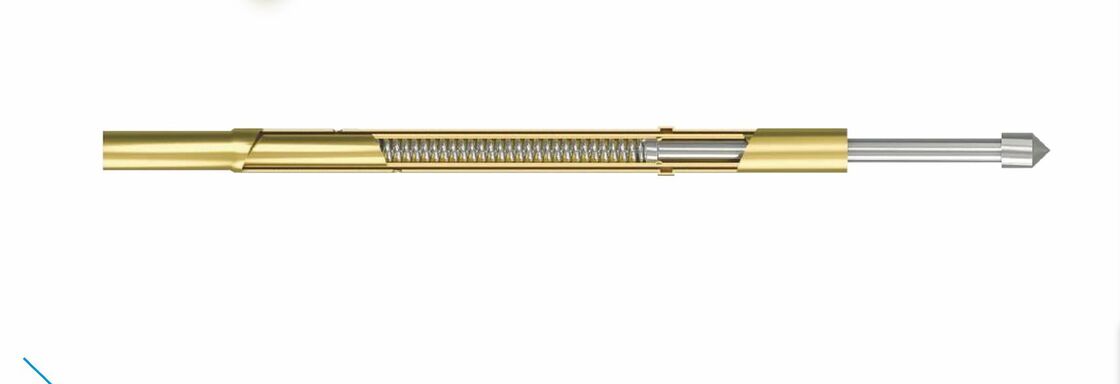

Product Images

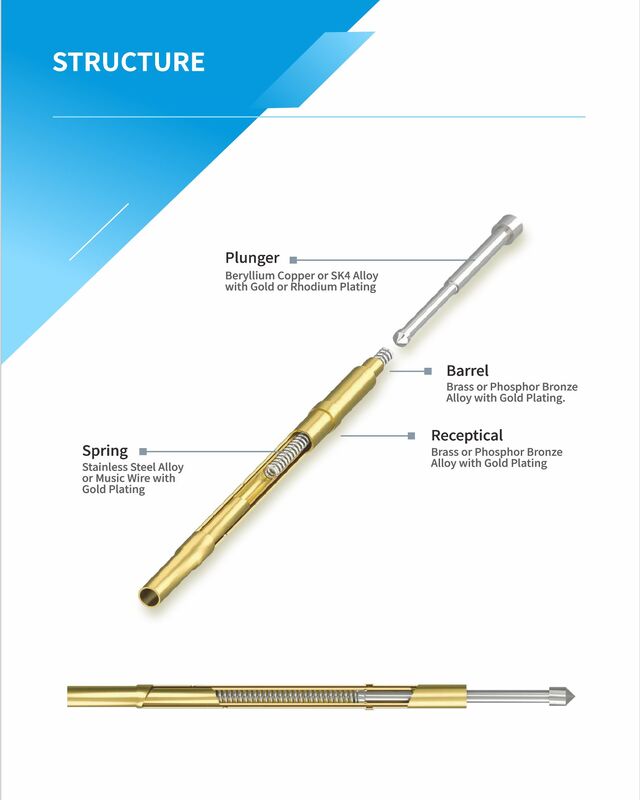

Detailed Component Illustration

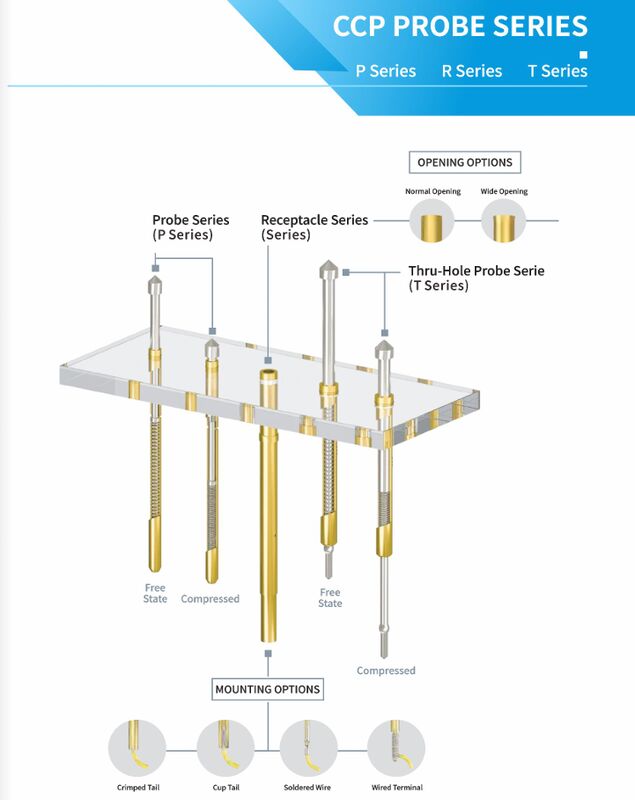

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
