Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Gold Plated Spring Test Probe

1.50mm Full Stroke Pogo Pin

50mΩ Max Contact Resistance ICT Test Probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Contact Us
Request A Quote
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing
Product Details
Product Name:
Standard Size Test Probe
Plunger:
BeCu/SK4,gold -plated
Barrel:
Bronze , Gold-palted
Spring:
SWP, Au On Ni Palted
Availability:
Custom Sizes Available
Coating:
Gold Plated
MOQ:
3000pcs
Receptacle:
Brass Gold Plated
Current Rating:
0.5amps
Contact Resistance:
50 Millionhms Max
Full Stroke:
1.50mm
Rated Stroke:
1.00mm
Spring Force:
1.0/2.0/3.0N
CEM1:
0.45mm(.0.67)
FR4:
0.45mm(.0.69)
Standard:
-40℃-+80℃
Special Design"C":
-100℃-+200℃
Highlight:

Gold Plated Spring Test Probe

,

1.50mm Full Stroke Pogo Pin

,

50mΩ Max Contact Resistance ICT Test Probe

Payment & Shipping Terms
Minimum Order Quantity
3000pcs
Price
999
Packaging Details
Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing online

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Get Best Price
Good price Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance online

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Get Best Price
Good price Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications online

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Get Best Price
Good price CHINA Supply YF-100 Brass Material Spring Contact Probe Pin online

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Get Best Price
Contact Us
Contact Now
Product Description
Spring Contact Probe Spring Test Probe P025
Customized Brass Barrel Stainless Steel Spring Test Probe P025 for In-Circuit-Test (ICT)

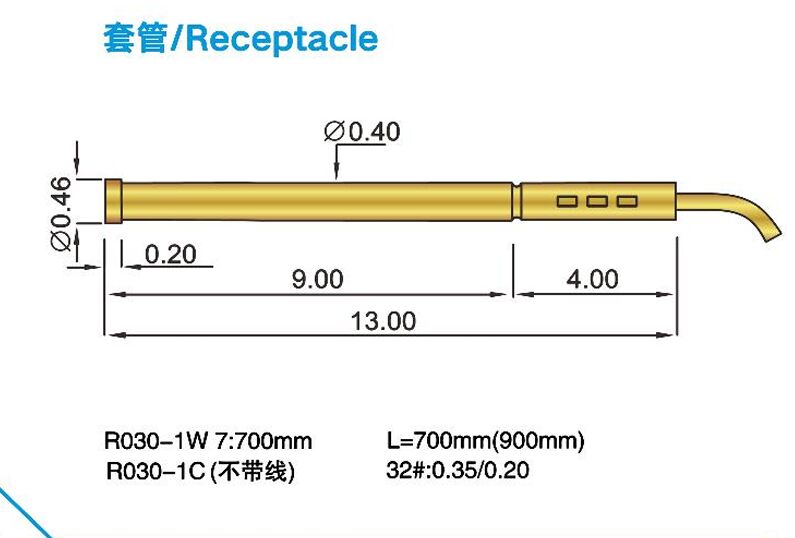

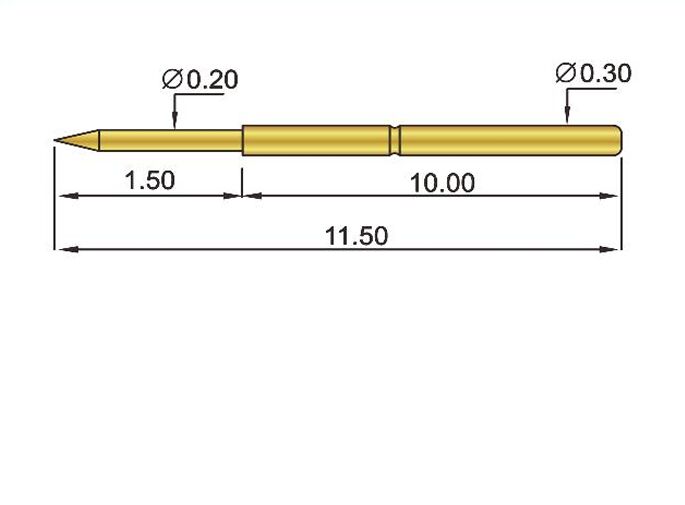

Production Specifications
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 0

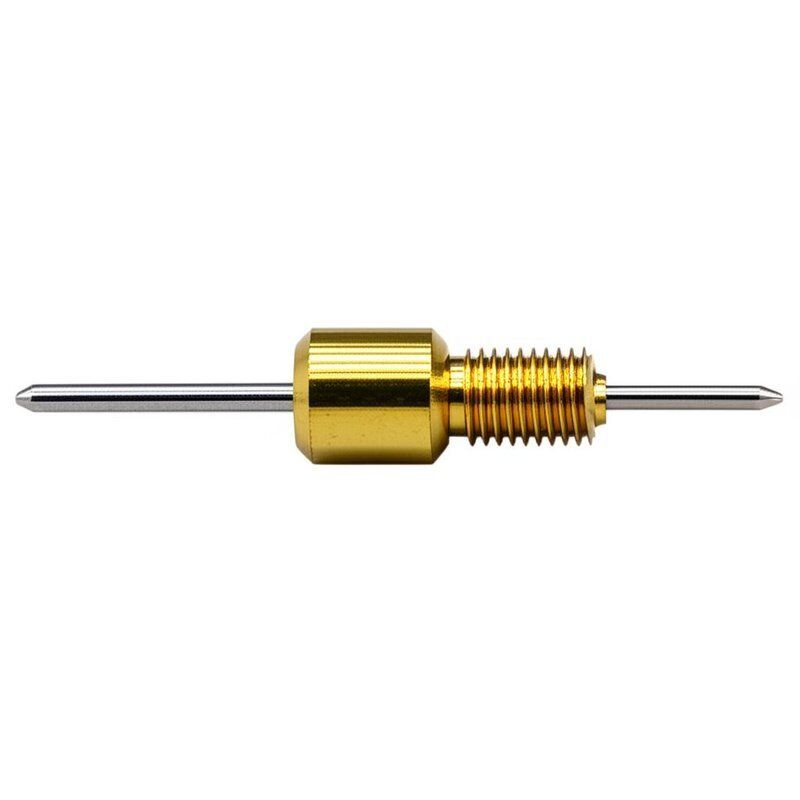

Product Images
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 1 Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 2

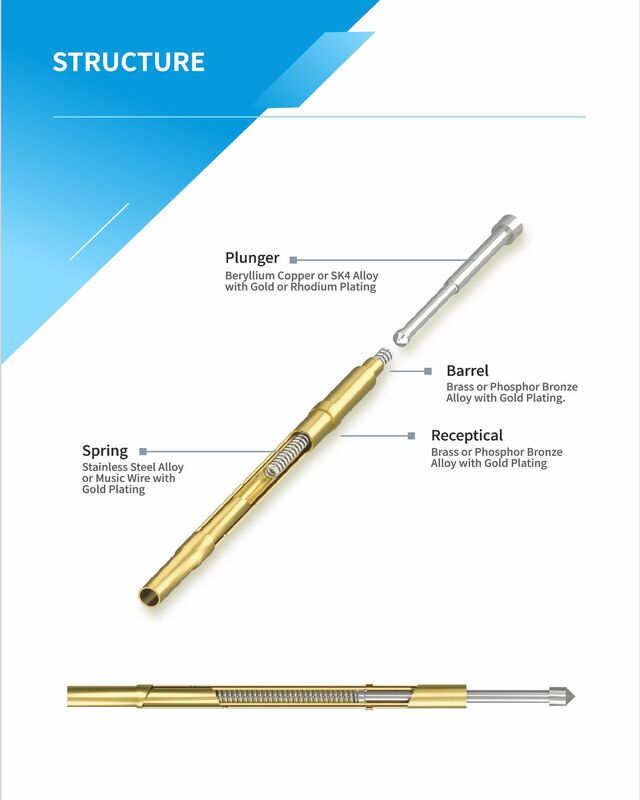

Detailed Component Illustration
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 3

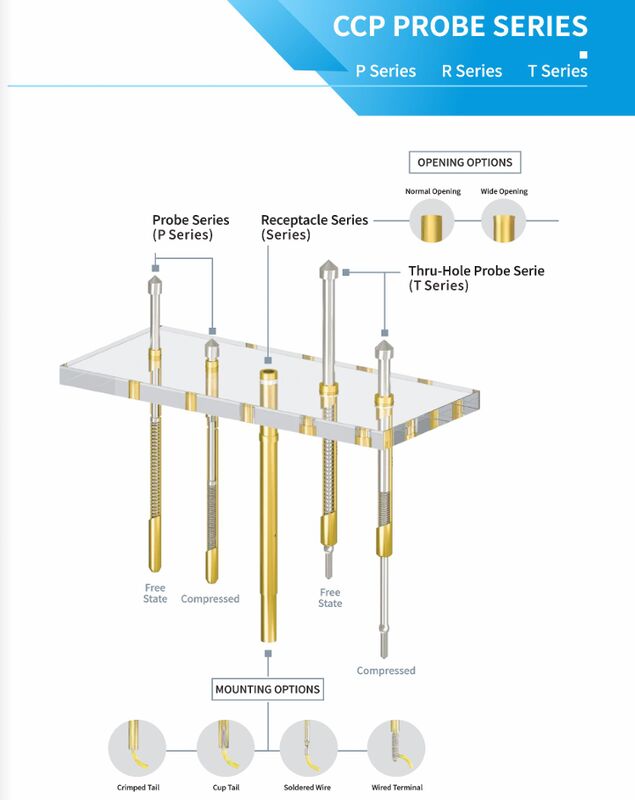

Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance.
Manufacturing Process
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 4
Our probe manufacturing facility
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 5
Quality control inspection
Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing 6
Packaged probes ready for shipment
Contact us to request samples or a quotation for your specific application requirements.
