Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

0.5amps Current Rating Spring Test Probe

50mΩ Max Contact Resistance Pogo Pin

1.50mm Full Stroke ICT Test Probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Contact Us
Request A Quote
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)
Product Details
Product Name:
Standard Size Test Probe
Plunger:
BeCu/SK4,gold -plated
Barrel:
Bronze , Gold-palted
Spring:
SWP, Au On Ni Palted
Availability:
Custom Sizes Available
Coating:
Gold Plated
MOQ:
3000pcs

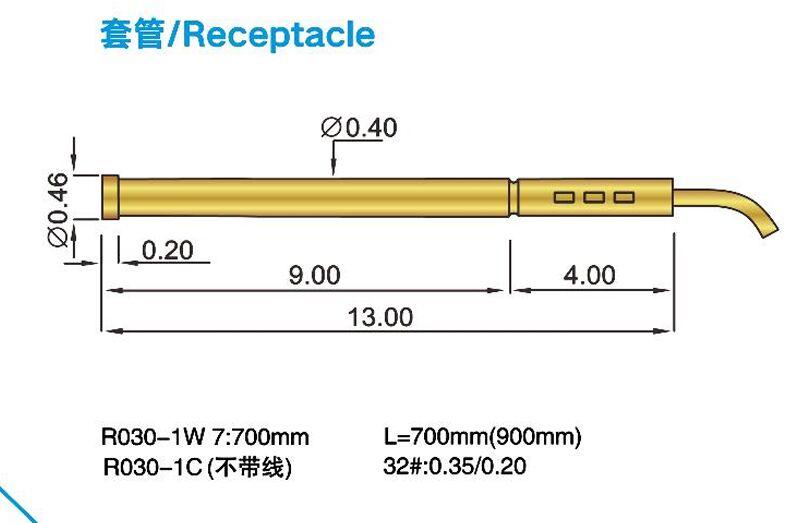

Receptacle:
Brass Gold Plated
Current Rating:
0.5amps
Contact Resistance:
50 Millionhms Max
Full Stroke:
1.50mm
Rated Stroke:
1.00mm
Spring Force:
1.0/2.0/3.0N
CEM1:
0.45mm(.0.67)
FR4:
0.45mm(.0.69)
Standard:
-40℃-+80℃
Special Design"C":
-100℃-+200℃
Highlight:

0.5amps Current Rating Spring Test Probe

,

50mΩ Max Contact Resistance Pogo Pin

,

1.50mm Full Stroke ICT Test Probe

Payment & Shipping Terms
Minimum Order Quantity
3000pcs
Price
999
Packaging Details
Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing online

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Get Best Price
Good price Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance online

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Get Best Price
Good price Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications online

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Get Best Price
Good price CHINA Supply YF-100 Brass Material Spring Contact Probe Pin online

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Get Best Price
Contact Us
Contact Now
Product Description

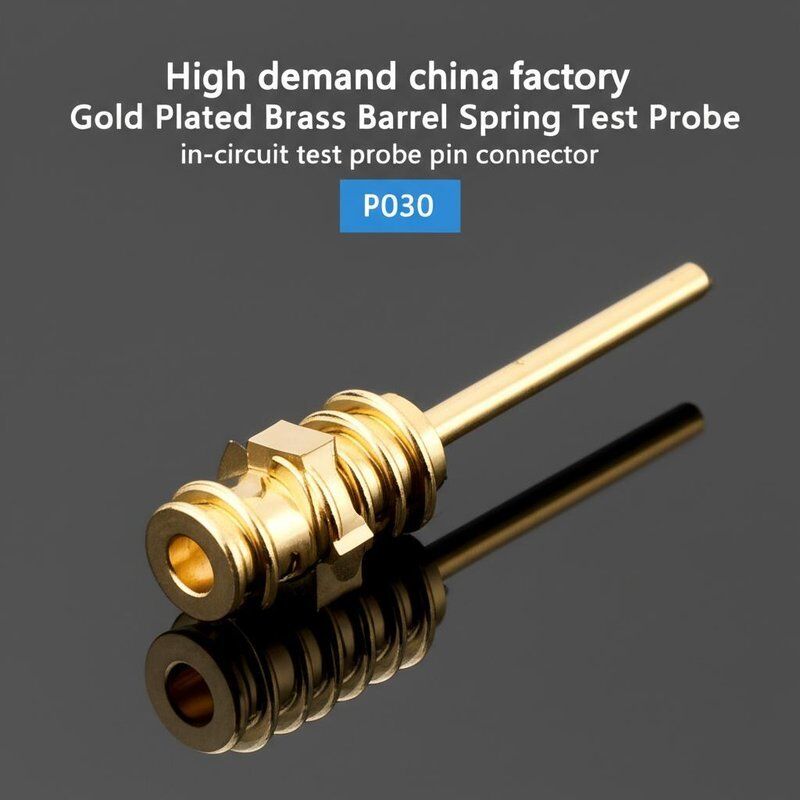

High Demand Gold Plated Brass Barrel Spring Test Probe P030
Customized Brass Barrel Stainless Steel Spring Test Probe P030 for In-Circuit-Test (ICT)

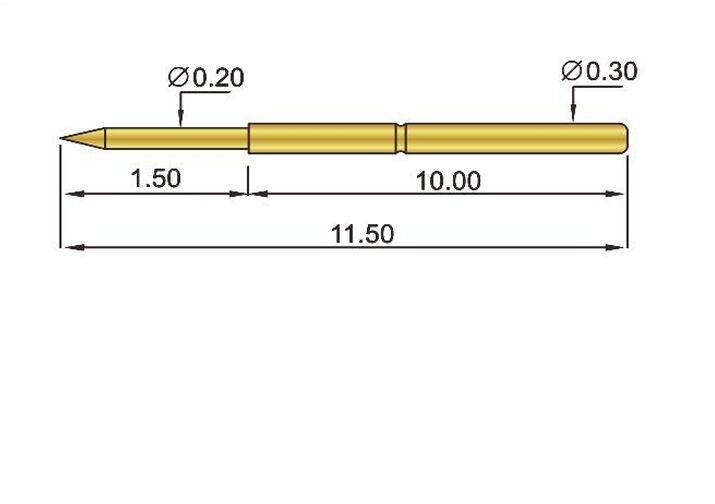

Production Specifications
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 0
Product Images
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 1 Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 2 Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 3

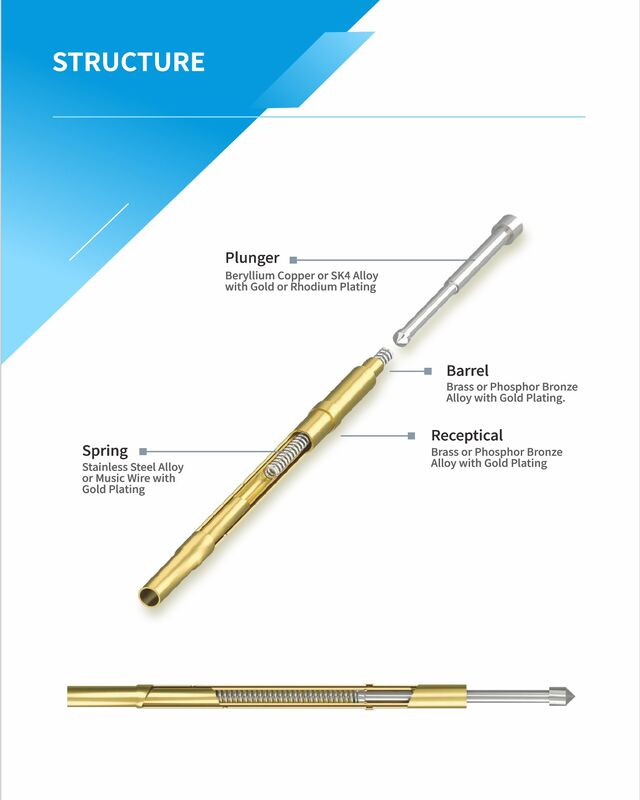

Detailed Component Illustration
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 4

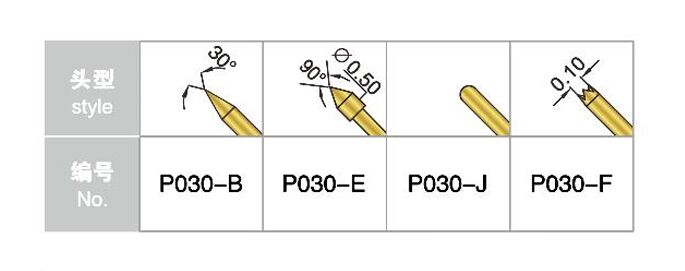

Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance.
Manufacturing Process
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 5
Our probe manufacturing facility
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 6
Quality control inspection
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) 7
Packaged probes ready for shipment
Contact us to request samples or a quotation for your specific application requirements.
