Name: Gold Plated Brass Barrel Spring Test Probe with BeCu/SK4 Plunger and SWP Spring for Precision Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Home > Products > Spring Test Probes >

Gold Plated Brass Barrel Spring Test Probe with BeCu/SK4 Plunger and SWP Spring for Precision Testing

BeCu/SK4 Plunger Spring Test Probe

Bronze Barrel Pogo Pin

SWP Spring ICT Test Probe

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Request A Quote

Gold Plated Brass Barrel Spring Test Probe with BeCu/SK4 Plunger and SWP Spring for Precision Testing

Product Details

Product Name:

Standard Size Test Probe

Plunger:

BeCu/SK4,gold -plated

Barrel:

Bronze , Gold-palted

Spring:

SWP, Au On Ni Palted

Availability:

Custom Sizes Available

Coating:

Gold Plated

MOQ:

3000pcs

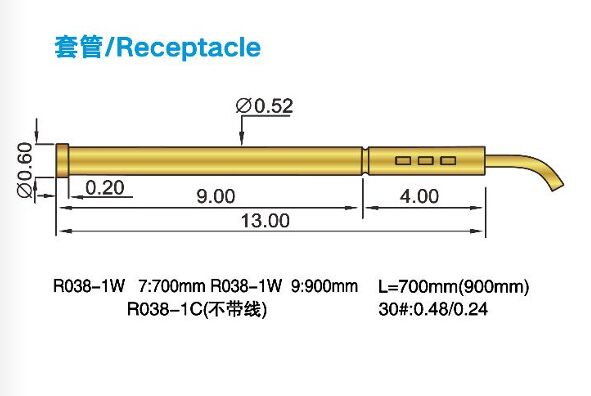

Receptacle:

Brass Gold Plated

Current Rating:

1amps

Contact Resistance:

50 Millionhms Max

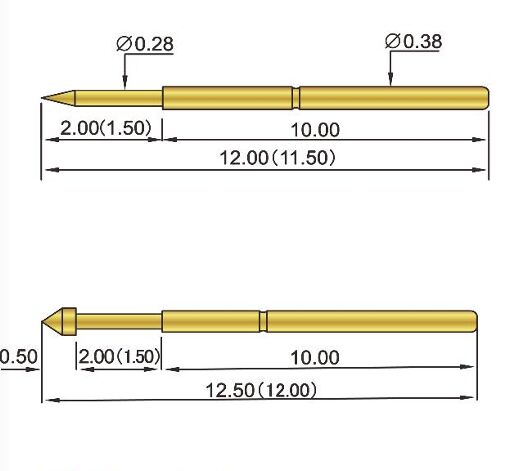

Full Stroke:

2.00mm

Rated Stroke:

1.50mm

Spring Force:

1.0/2.0/3.0N

CEM1:

0.7mm

FR4:

0.7mm

Standard:

-40℃-+80℃

Special Design"C":

-100℃-+200℃

Highlight:

BeCu/SK4 Plunger Spring Test Probe

Bronze Barrel Pogo Pin

SWP Spring ICT Test Probe

Payment & Shipping Terms

Minimum Order Quantity

3000pcs

Price

999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

Get Best Price

China Supplier ICT test probe P048

Get Best Price

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

Get Best Price

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Get Best Price

Contact Now

Product Description

Wholesale Price Spring Loaded Test Probes - Model P038

High demand gold plated brass barrel stainless steel spring test probes designed for In-Circuit-Test (ICT) applications. These precision components offer reliable performance and durability for demanding testing environments.

Production Specifications

Product Images

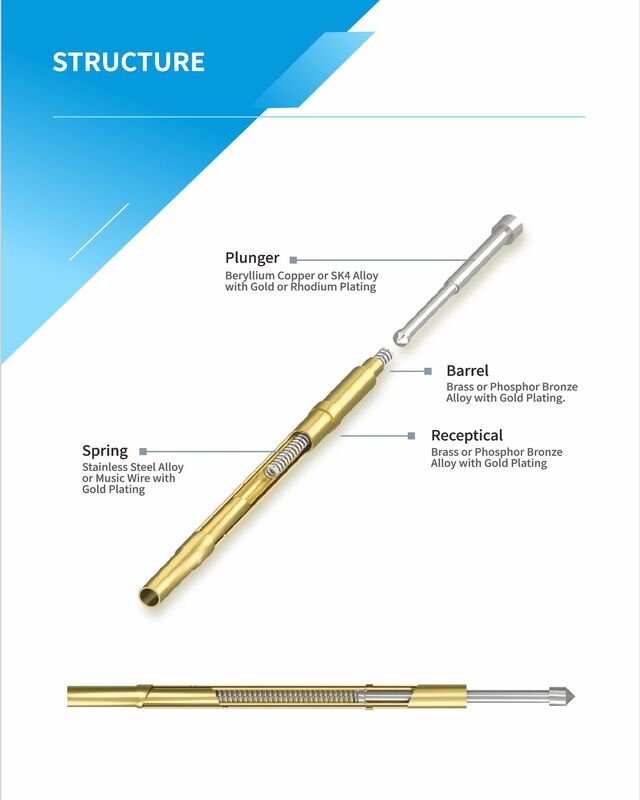

Detailed Component Illustration

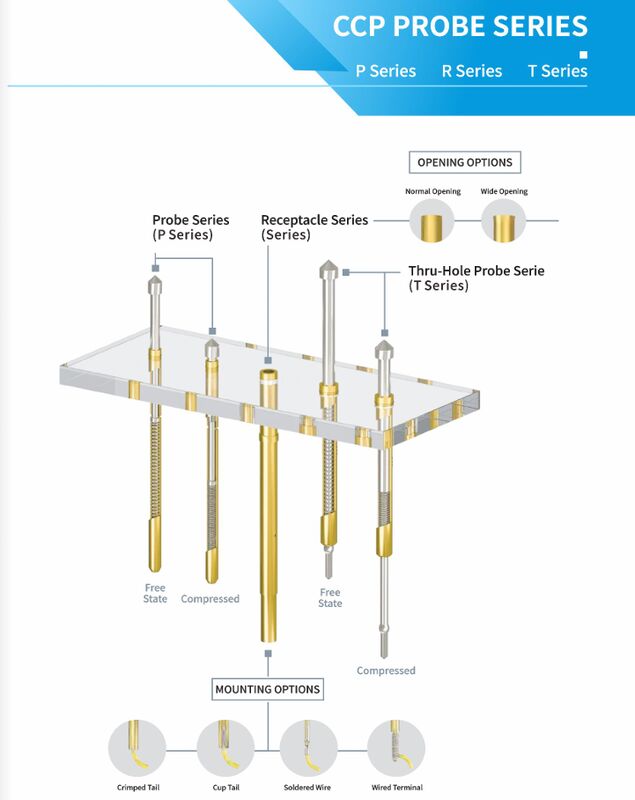

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
