Name: Gold Plated Spring Test Probe with 1A Current Rating and Custom Sizes for BGA Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Home > Products > Spring Test Probes >

Gold Plated Spring Test Probe with 1A Current Rating and Custom Sizes for BGA Testing

Gold Plated Spring Test Probe

1A Current Rating BGA Testing Probe

Custom Sizes Semiconductor Test Pin

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Request A Quote

Product Details

Product Name:

Spring Test Probe

Barrel:

P.B., Gold-palted

Bottom Plunger:

BeCu/SK4,gold -plated

TOP Plunger:

SK4(Be Cu)/Gold Plated

Spring:

SWPB(SUS)/Gold Plated

Availability:

Custom Sizes Available

Coating:

Gold Plated

Current Rating:

Contact Resistance:

100 Mohms Max

Bandwidth:

-0.0.08dB @ 19.6GHz

Inductace:

1.17nH

Captance:

1.45pF

Full Stroke:

0.6mm

Rated Stroke:

0.45mm

Spring Force:

27grams@0.45mm

Mechanical Life Exceeds:

200K

Highlight:

Gold Plated Spring Test Probe

1A Current Rating BGA Testing Probe

Custom Sizes Semiconductor Test Pin

Payment & Shipping Terms

Minimum Order Quantity

3000pcs

Price

999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5-8 WORKING DAYS

Payment Terms

L/C,Western Union,T/T

Supply Ability

100000 rolls per month

Gold Plated High Durability Spring Test Probe

Get Best Price

Double plunger, push fit test probe for fine pitch components.

Get Best Price

Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing

Get Best Price

Gold Plated Spring Test Probe with 1A Current Rating and Custom Sizes for BGA Testing

Get Best Price

Contact Now

Product Description

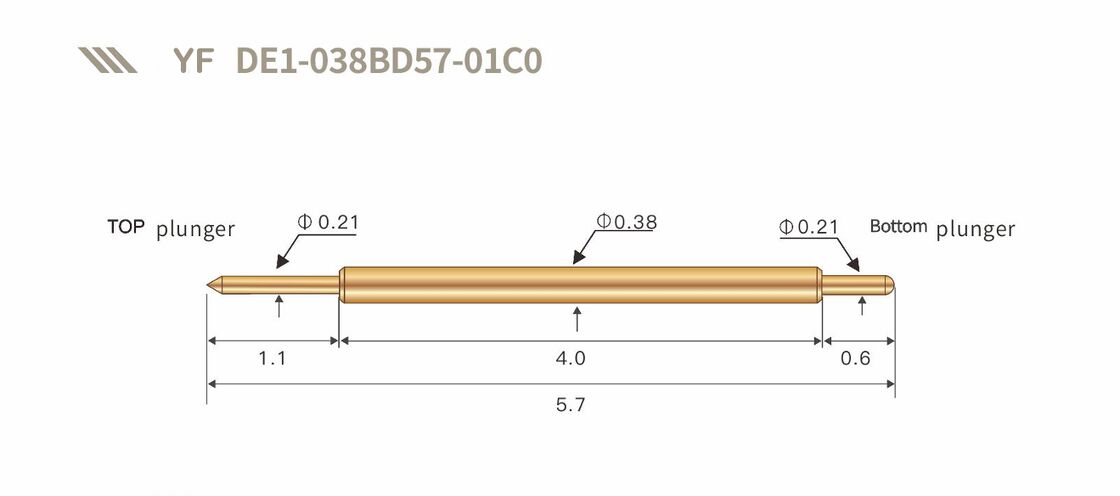

Electric Cable Switching Probe YF DE1-038BD57-01C0

High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Production Specifications

Product Images

Detailed Component Illustration

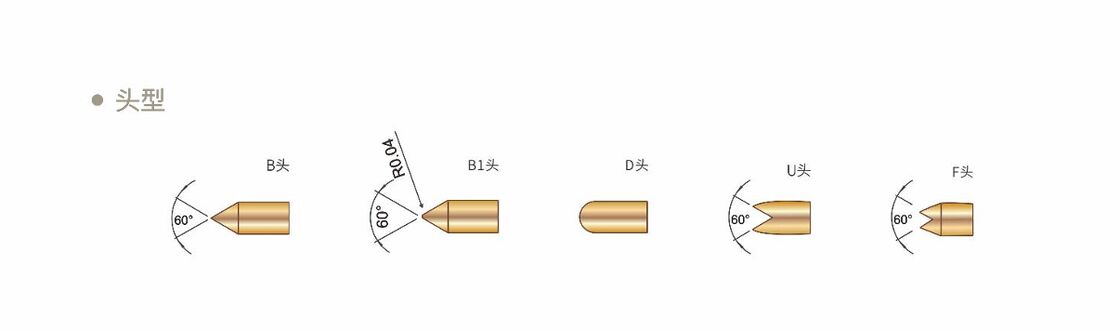

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
