Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing

Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing

Gold Plated Spring Test Probe

High Durability Pogo Pin

Custom Sizes Semiconductor Test Pin

Place of Origin:

CHINA

Brand Name:

WINNER

Certification:

ISO9100

Contact Us
Request A Quote
Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing
Product Details
Product Name:
Spring Test Probe
Barrel:
P.B., Gold-palted
Bottom Plunger:
BeCu/SK4,gold -plated
TOP Plunger:
SK4(Be Cu)/Gold Plated
Spring:
SWPB(SUS)/Gold Plated
Availability:
Custom Sizes Available
Coating:
Gold Plated
Current Rating:
2A
Contact Resistance:
100 Mohms Max
Bandwidth:
-0.98dB @ 19.6GHz
Inductace:
1.16nH
Captance:
1.45pF
Full Stroke:
0.4mm
Rated Stroke:
0.3mm
Spring Force:
35grams@0.3mm
Mechanical Life Exceeds:
200K
Highlight:

Gold Plated Spring Test Probe

,

High Durability Pogo Pin

,

Custom Sizes Semiconductor Test Pin

Payment & Shipping Terms
Minimum Order Quantity
3000pcs
Price
999
Packaging Details
Neutrial Packing or with OEM LOGO
Delivery Time
5-8 WORKING DAYS
Payment Terms
L/C,Western Union,T/T
Supply Ability
100000 rolls per month
RELATED PRODUCTS
Good price Double Ended Spring Loaded Pin for Automated Test Equipment (ATE) online

Double Ended Spring Loaded Pin for Automated Test Equipment (ATE)

Get Best Price
Good price Precision Pogo Pin Probe Double Ended for Electronic Testing online

Precision Pogo Pin Probe Double Ended for Electronic Testing

Get Best Price
Good price High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT online

High Precision Double Ended Pogo Pin Spring Loaded Test Probe for ICT & FCT

Get Best Price
Good price China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available online

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

Get Best Price
Contact Us
Contact Now
Product Description
Gold-Plated Spring Test Probe | High Durability Pogo Pin for Electronic Contact Testing

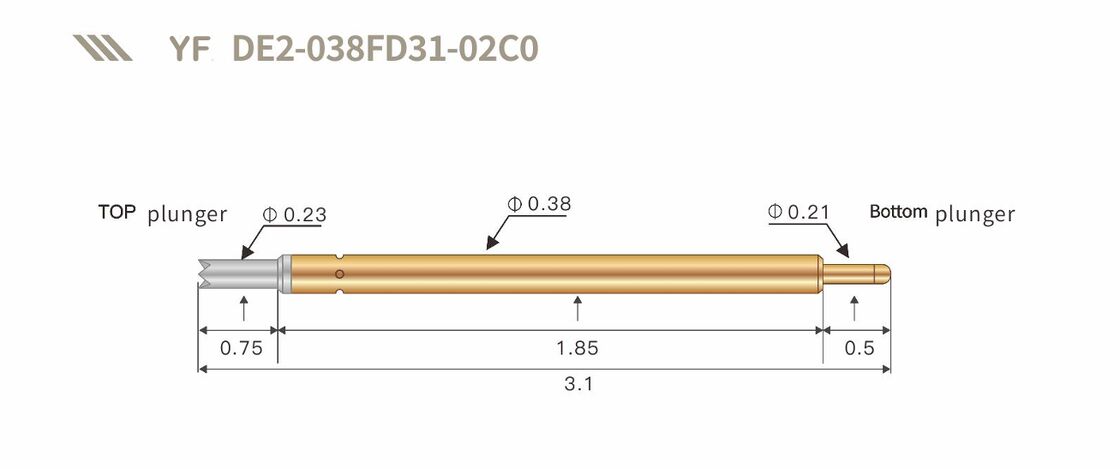

Electric Cable Switching Probe YF DE2-038FD31-02C0
High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

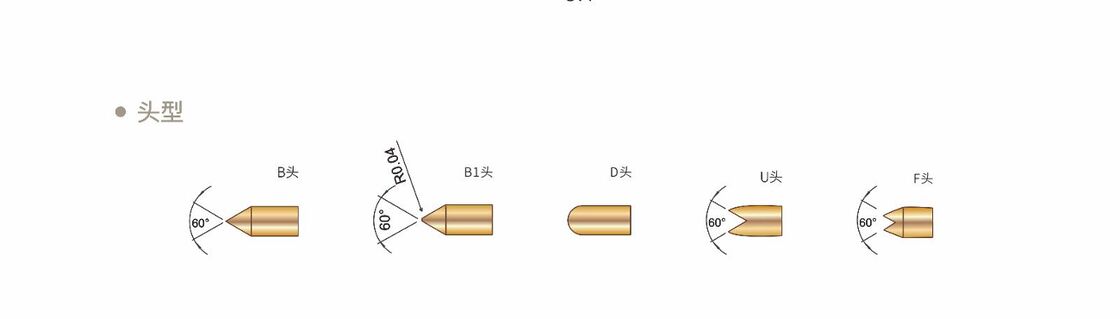

  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Production Specifications
Production specifications diagram for spring test probe
Product Images

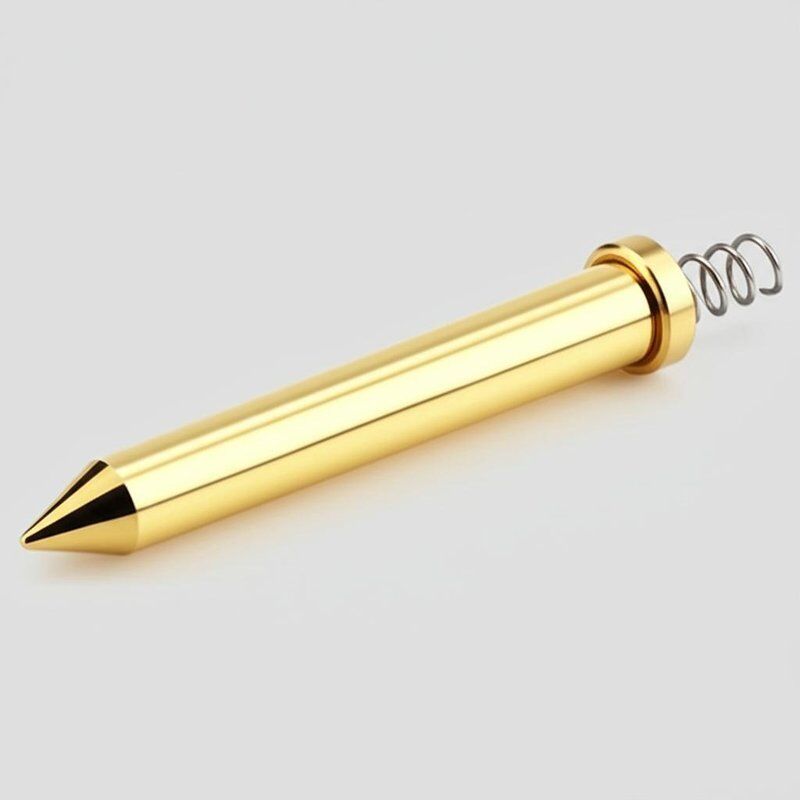

Gold-plated spring test probe product image
Detailed view of test probe components
Detailed Component Illustration
Comparison of different test probe tip types and configurations
Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
State-of-the-art manufacturing facility producing electronic probes
Our probe manufacturing facility
Quality control inspection process for test probes
Quality control inspection
Packaged test probes prepared for secure shipment
Packaged probes ready for shipment
