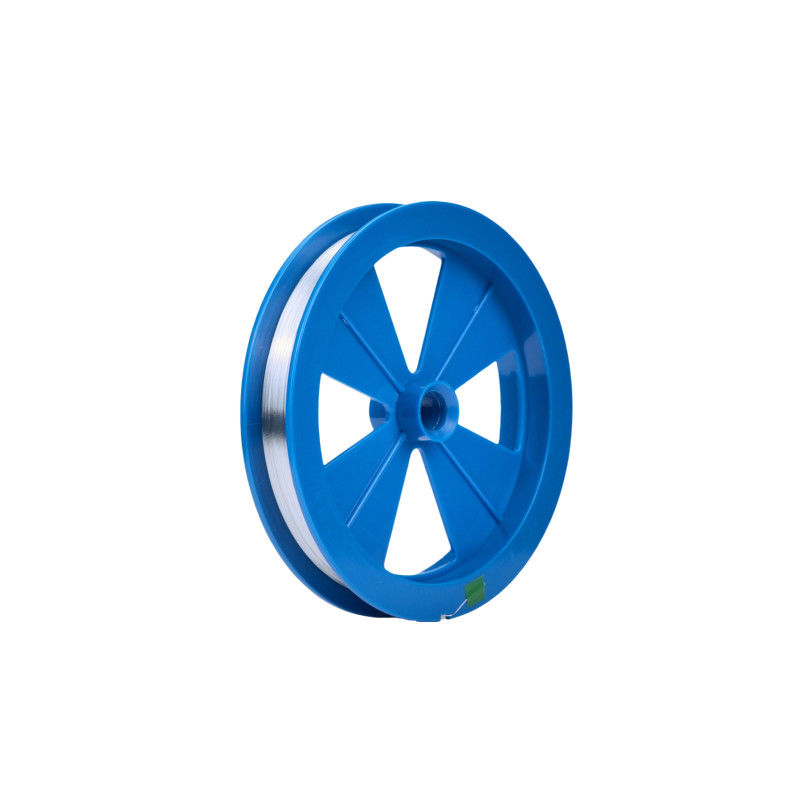

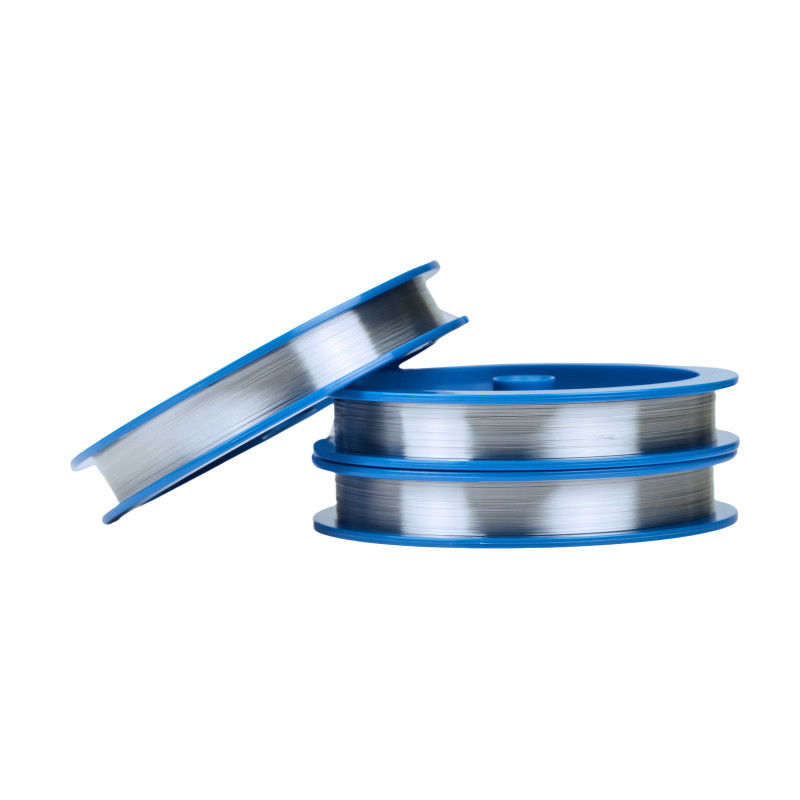

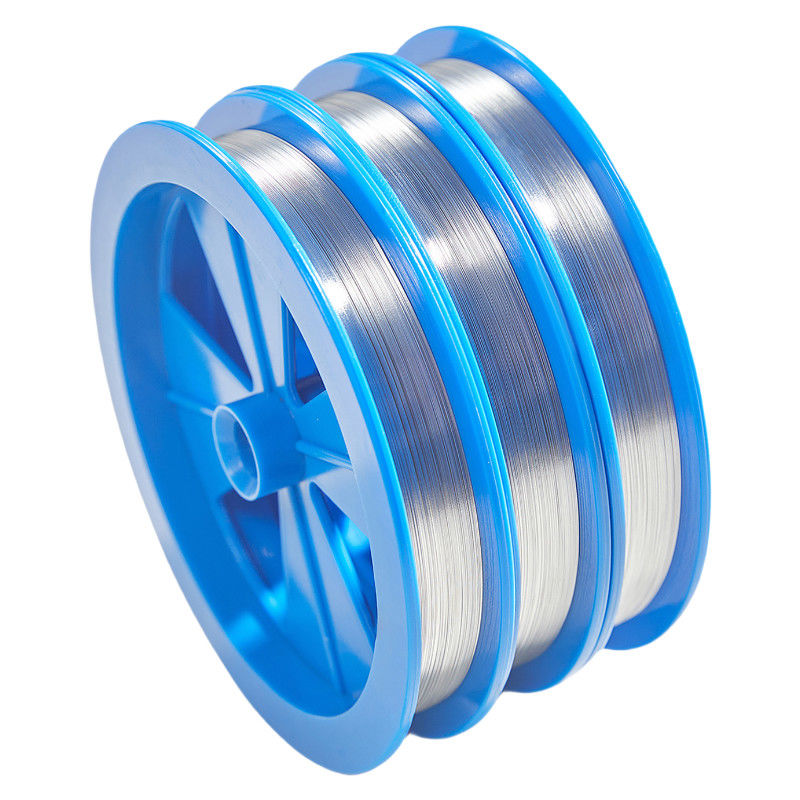

0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging

0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging

0.05mm aluminium bonding wires

0.001mm aluminium bonding wires

bonding wires High Purity

Place of Origin:

China

Brand Name:

Winner

Certification:

ISO9001,ROHS

Model Number:

WNE T5

Contact Us
Request A Quote
0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging
0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging 0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging 0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging
Product Details
Diameter:
0.01mm - 0.5mm
Breaking Load BL(gf):
>4
Elongation EL(%):
3-20
Wire Bonding Type:
Ball Bonding, Wedge Bonding, Ribbon Bonding
Package:
Spool, Reel, Coil
Application:
Semiconductor, Electronics, Medical Devices
Highlight:

0.05mm aluminium bonding wires

,

0.001mm aluminium bonding wires

,

bonding wires High Purity

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
1~999
Packaging Details
Roll, Neutrial Packing or with OEM LOGO
Delivery Time
5~8 working days.
Payment Terms
T/T, Western Union, L/C
Supply Ability
1000000 rolls per month
RELATED PRODUCTS
Good price Ultra Fine Wire 0.01mm Diameter Gold Bonding Wire For Semiconductor Packaging online Video

Ultra Fine Wire 0.01mm Diameter Gold Bonding Wire For Semiconductor Packaging

Get Best Price
Good price High tensile test performance Ultra Fine Wire Gold Bonding Wire for semiconductor packaging and assembly processes online Video

High tensile test performance Ultra Fine Wire Gold Bonding Wire for semiconductor packaging and assembly processes

Get Best Price
Good price 99.999% Purity 0.01mm Diameter Ultra Fine Gold Bonding Wire for Automotive and Aerospace applications online Video

99.999% Purity 0.01mm Diameter Ultra Fine Gold Bonding Wire for Automotive and Aerospace applications

Get Best Price
Good price Premium Ultra Fine Wire Gold Bonding Wire for Advanced Electronic Bonding Applications online Video

Premium Ultra Fine Wire Gold Bonding Wire for Advanced Electronic Bonding Applications

Get Best Price
Contact Us
86-15818576616
sales@winner-sc.com
Contact Now
Product Description

0.01mm-0.5mm 6N High Purity Aluminium Bonding Wires For Power Semiconductor Packaging

Looking for high - quality bonding wires for power semiconductor packaging? Our 0.01mm - 0.5mm 6N High Purity Aluminium Bonding Wires are the perfect choice.

These wires offer outstanding electrical conductivity, ensuring efficient power transmission. With a purity level of 6N, they minimize impurities, enhancing reliability and performance in semiconductor applications. Their precise diameter range from 0.01mm - 0.5mm makes them suitable for various packaging requirements. Ideal for power semiconductor packaging, they contribute to better device functionality and long - term stability.

* It is widely used in packaging various power semiconductors. In power electronics, MOSFET used in power supply and motor control systems, IGBT in high - power applications like electric vehicle inverters and industrial motor drives, thyristor in power control systems handling high current and voltage, GTO in high - power switching circuits, and diode in rectifier and other power - related applications all benefit from this welding wire for reliable, stable, and efficient packaging, highlighting its significance and versatility.

* The welding wire is made from 6N high - purity aluminum with carefully selected trace elements added in a certain proportion. The high - grade aluminum provides good electrical conductivity and other physical properties, and the trace elements enhance the wire's performance by optimizing its functionality, such as improving melting behavior, bond strength with different materials, and resistance to oxidation and corrosion.



Al Wire for Power

Type

Ø Diameter

(μm)

Breaking Load

BL(gf)

Elongation

EL(%)

Length

Meters

WNE T1

100±5

50~100

10~30

500/1000/2000

125±5

60~120

10~30

500/1000/2000

150±5

100~200

10~30

500/1000/2000

170±5

140~240

10~30

500/1000/2000

200±7

150~250

10~30

500/1000/2000



Bonded aluminum wire applications:

*Automotive electronics

*Consumer electronics

*Computing equipment

*Chip on board (COB) technology

*Bonding of discrete components (diodes, transistors, capacitors, resistors)

*Bonding of hybrid components



Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 0

1.What kind of Enameled copper wire do Winner produce?

We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.



2.What's diameters available of the Enamelled copper wire ?

We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.



3.What's selfbonding enameled copper wire?

Selfbonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.This adhesive has a bonding feature, which is activated

by heat or solvents.

Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.

The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications

as bobbins, tape, varnishing, or impregnation may be eliminated.



4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?

Of course you can!

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 1

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 2

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 3



Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 5
