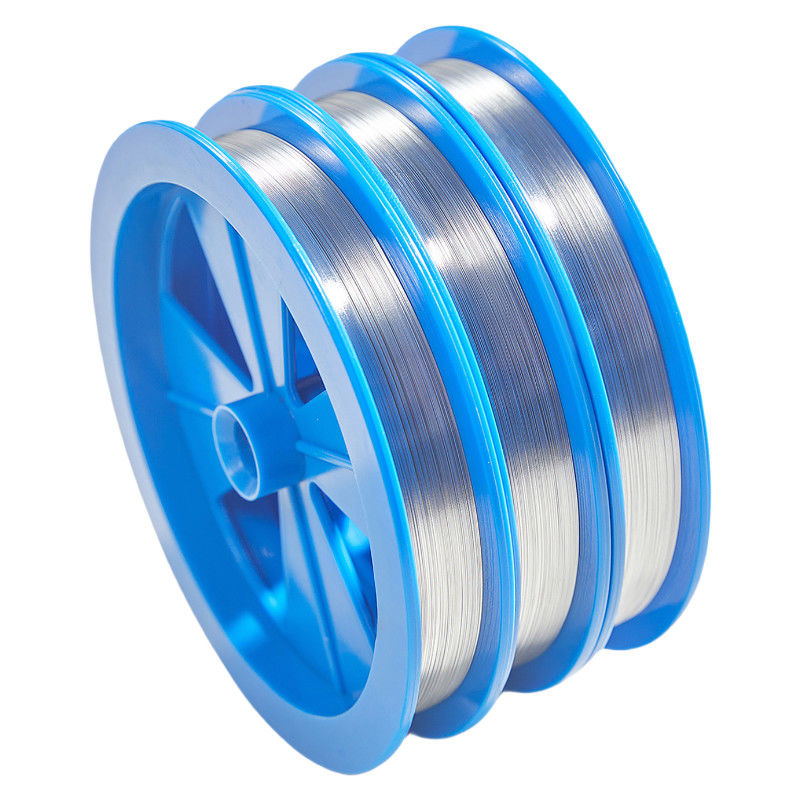

6N High Purity Aluminum Alloy Bonding Wire For Power Semiconductor Packaging

6N High Purity Aluminum Alloy Bonding Wire For Power Semiconductor Packaging

Oxidized wire bond wire 0.001mm

winner High Purity Bonding Wire

0.001mm Oxidized wire bond wire

Place of Origin:

China

Brand Name:

WINNER

Certification:

ISO9001

Model Number:

WNE T7

Contact Us
Request A Quote
6N High Purity Aluminum Alloy Bonding Wire For Power Semiconductor Packaging
6N High Purity Aluminum Alloy Bonding Wire For Power Semiconductor Packaging
Product Details
Diameter:
0.001mm - 0.05mm
Breaking Load BL(gf):
>4
Elongation EL(%):
3-20
Wire Bonding Type:
Ball Bonding, Wedge Bonding, Ribbon Bonding
Package:
Spool, Reel, Coil
Material:
Aluminum
Application:
Semiconductor, Electronics, Medical Devices
Surface Finish:
Bright, Matte, Oxidized
Bonding Method:
Thermocompression, Ultrasonic, Laser
Highlight:

Oxidized wire bond wire 0.001mm

,

winner High Purity Bonding Wire

,

0.001mm Oxidized wire bond wire

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
1~999
Packaging Details
Roll, Neutrial Packing or with OEM LOGO
Delivery Time
5~8 working days.
Payment Terms
T/T, Western Union, L/C
Supply Ability
1000000 rolls per month
RELATED PRODUCTS
Good price Ultra Fine Wire 0.01mm Diameter Gold Bonding Wire For Semiconductor Packaging online Video

Ultra Fine Wire 0.01mm Diameter Gold Bonding Wire For Semiconductor Packaging

Get Best Price
Good price High tensile test performance Ultra Fine Wire Gold Bonding Wire for semiconductor packaging and assembly processes online Video

High tensile test performance Ultra Fine Wire Gold Bonding Wire for semiconductor packaging and assembly processes

Get Best Price
Good price 99.999% Purity 0.01mm Diameter Ultra Fine Gold Bonding Wire for Automotive and Aerospace applications online Video

99.999% Purity 0.01mm Diameter Ultra Fine Gold Bonding Wire for Automotive and Aerospace applications

Get Best Price
Good price Premium Ultra Fine Wire Gold Bonding Wire for Advanced Electronic Bonding Applications online Video

Premium Ultra Fine Wire Gold Bonding Wire for Advanced Electronic Bonding Applications

Get Best Price
Contact Us
86-15818576616
sales@winner-sc.com
Contact Now
Product Description

6N High Purity Aluminum Alloy Bonding Wire with Enhanced Performance for Various Power Semiconductor Packaging Needs


* Our high quality welding wire is meticulously crafted from 6N high purity aluminum material. This top grade aluminum forms the core of the wire, providing it with remarkable electrical conductivity and other outstanding physical properties. Moreover, a specific proportion of carefully selected trace elements are added to this base material. These trace elements are crucial as they work in harmony with the aluminum to enhance the overall performance of the welding wire, making it more suitable for a wide range of applications.

* This welding wire finds extensive use in the packaging of power semiconductors. It is an essential component in the manufacturing process of various power semiconductor devices including MOSFET (Metal - Oxide - Semiconductor Field - Effect Transistor), which is widely utilized in power supply circuits and motor control systems. IGBT (Insulated Gate Bipolar Transistor), a key element in high - power applications like electric vehicle inverters and industrial motor drives, also relies on this welding wire for its packaging needs. Additionally, it is used in the packaging of Thyristor, which is commonly employed in power control systems due to its ability to handle high current and voltage. GTO (Gate Turn - Off Thyristor), with its unique turn - off capability and applications in high - power switching circuits, also depends on this welding wire.



Al Wire for Power

Type

Ø Diameter

(μm)

Breaking Load

BL(gf)

Elongation

EL(%)

Length

Meters

WNE T1

100±5

50~100

10~30

500/1000/2000

125±5

60~120

10~30

500/1000/2000

150±5

100~200

10~30

500/1000/2000

170±5

140~240

10~30

500/1000/2000

200±7

150~250

10~30

500/1000/2000



Bonded aluminum wire applications:

*Automotive electronics

*Consumer electronics

*Computing equipment

*Chip on board (COB) technology

*Bonding of discrete components (diodes, transistors, capacitors, resistors)

*Bonding of hybrid components



Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 0

1.What kind of Enameled copper wire do Winner produce?

We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.



2.What's diameters available of the Enamelled copper wire ?

We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.



3.What's selfbonding enameled copper wire?

Selfbonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.This adhesive has a bonding feature, which is activated

by heat or solvents.

Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.

The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications

as bobbins, tape, varnishing, or impregnation may be eliminated.



4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?

Of course you can!

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 1

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 2

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 3

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 4

Silver Bonding Wire with Composite Material Treatment for Performance in Servers and Systems 5
